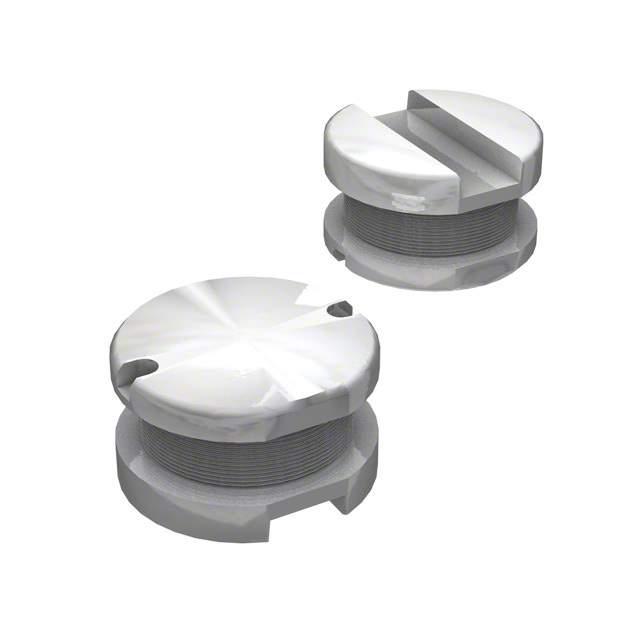

SDR0503-502JL

Part No SDR0503-502JL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0503
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 5 mH
Tolerance ±5%
Current Rating (Amps) 39 mA
Current - Saturation (Isat) 50mA
Shielding Unshielded
DC Resistance (DCR) 60Ohm Max
Q @ Freq 40 @ 252kHz
Frequency - Self Resonant 1MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.197" L x 0.189" W (5.00mm x 4.80mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SDR0503
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274810-SDR0503-502JL
Ultra Librarian 3D Model Ultra Librarian SDR0503-502JL CAD Model

Description

The Bourns Inc. SDR0503-502JL is a drum core, wirewound inductor that is unshielded and has a ferrite core material.

  • Inductance: 5 mH
  • Tolerance: ±5%
  • DC Resistance (DCR): 60Ohm Max
  • Q @ Freq: 40 @ 252kHz
  • Frequency - Self-Resonant: 1MHz
  • Current Rating (amps): 39mA
  • Current - Saturation (Isat): 50mA
  • Package/Case: Nonstandard
  • Packaging: Tape & reel (TR)
  • Temperature Range: -40°C to 125°C
  • REACH: Unaffected
