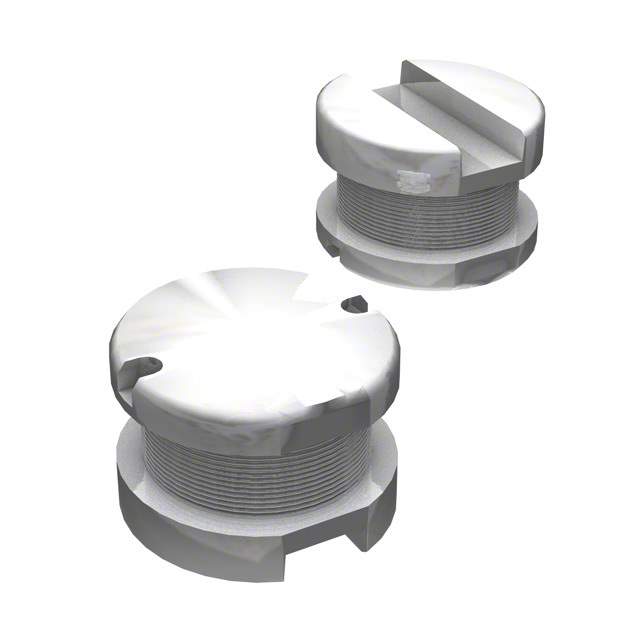

SDR0603-181KL Real Image
Same model may have multiple batches, images only for reference.

SDR0603-181KL

Part No SDR0603-181KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0603-181KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0603
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 180 µH
Tolerance ±10%
Current Rating (Amps) 300 mA
Current - Saturation (Isat) 500mA
Shielding Unshielded
DC Resistance (DCR) 1.6Ohm Max
Q @ Freq 26 @ 796kHz
Frequency - Self Resonant 7MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.154" (3.90mm)
Base Product Number SDR0603
Other Names SDR0603-181KL,118-SDR0603-181KLTR,118-SDR0603-181KLCT,118-SDR0603-181KLDKR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274770-SDR0603-181KL
Ultra Librarian 3D Model Ultra Librarian SDR0603-181KL CAD Model

Description

The Bourns Inc. SDR0603 series is a range of drum core, wirewound inductors.

  • Package: Tape and Reel
  • Shielding: Unshielded
  • Inductance: 180 µH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Q @ Freq: 26 @ 796kHz
  • Frequency Self-Resonant: 7MHz
  • DC Resistance (DCR): 1.6Ohm Max
  • Package/Case: Nonstandard
  • Mounting: SMD (SMT)
  • Current Rating (Amps): 300mA
  • Inductance Frequency - Test: 1 kHz
  • Temperature Range - Operating: -40°C to 125°C
  • Dimension: 0.228" L x 0.228" W (5.80mm x 5.80mm)
