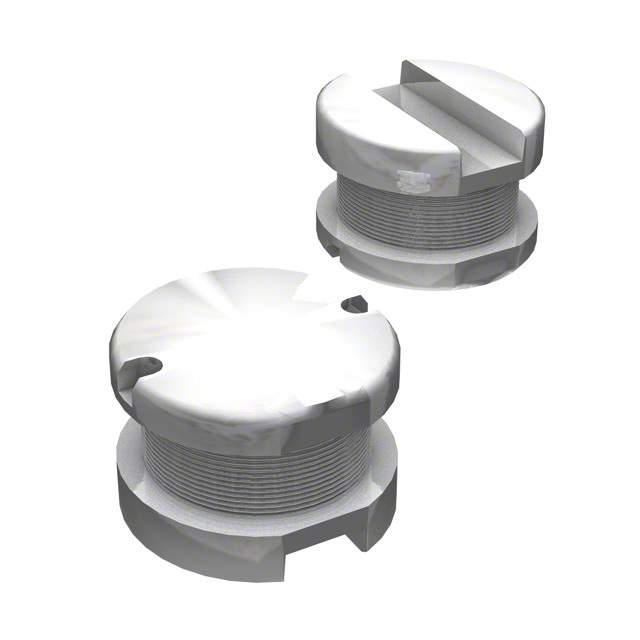

SDR0603-1R5ML Real Image
Same model may have multiple batches, images only for reference.

SDR0603-1R5ML

Part No SDR0603-1R5ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0603-1R5ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0603
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 3.5A
Shielding Unshielded
DC Resistance (DCR) 40mOhm Max
Q @ Freq 24 @ 7.96MHz
Frequency - Self Resonant 85MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.154" (3.90mm)
Base Product Number SDR0603
Other Names SDR06031R5ML,SDR0603-1R5MLTR,SDR0603-1R5MLDKR,SDR0603-1R5MLCT,SDR0603-1R5ML
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274772-SDR0603-1R5ML
Ultra Librarian 3D Model Ultra Librarian SDR0603-1R5ML CAD Model

Description

The Bourns Inc. 1274772-SDR0603-1R5ML is a drum core, wirewound fixed inductor with a tape and reel package.

  • Shielding: Unshielded
  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 40mOhm Max
  • Current Rating: 3 A
  • Shape: Rectangular
  • Dimension: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Height: 0.154" (3.90mm)
