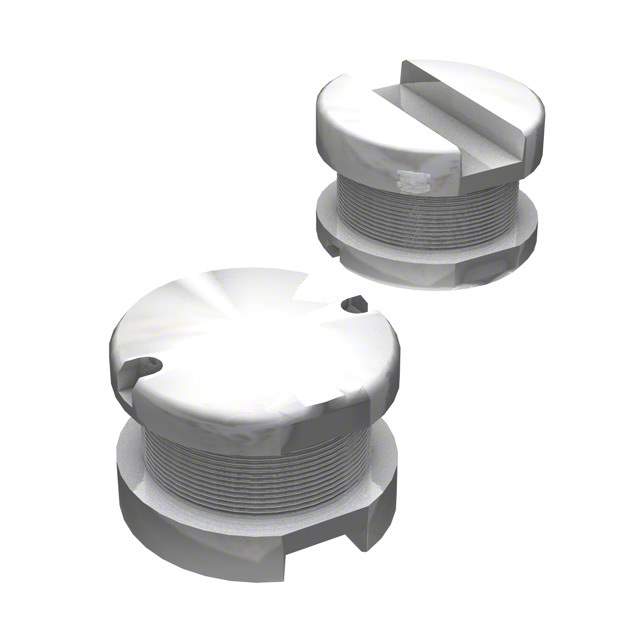

SDR0603-271KL Real Image
Same model may have multiple batches, images only for reference.

SDR0603-271KL

Part No SDR0603-271KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0603-271KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0603
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 270 µH
Tolerance ±10%
Current Rating (Amps) 240 mA
Current - Saturation (Isat) 380mA
Shielding Unshielded
DC Resistance (DCR) 2.4Ohm Max
Q @ Freq 26 @ 796kHz
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.154" (3.90mm)
Base Product Number SDR0603
Other Names ,-SDR0603-271KLTR,-852-SDR0603-271KLCT,118-SDR0603-271KLCT,SDR0603-271KLCT,-852-SDR0603-271KLTR,SDR0603-271KLCT,SDR0603-271KLTR,-SDR0603-271KLTR,118-SDR0603-271KLDKR,-SDR0603-271KLCT,118-SDR0603-271KLTR,-SDR0603-271KLCT,SDR0603-271KL,SDR0603-271KLTR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274769-SDR0603-271KL
Ultra Librarian 3D Model Ultra Librarian SDR0603-271KL CAD Model

Description

The Bourns Inc. SDR0603-271KL is a fixed inductor.

  • Series: SDR0603
  • Inductor Type: Drum core, wirewound
  • Inductance: 270 µH
  • Tolerance: ±10%
  • DC Resistance (DCR): 2.4Ohm Max
  • Temperature Range: -40°C to 125°C
  • Package/Case: Nonstandard
  • Packaging: Tape and Reel
  • Standard Package: 400 inductors
  • Shielding: Unshielded
  • Q @ Freq: 26 @ 796kHz
  • Current Rating (amps): 240 mA
  • Current Saturation (Isat): 380mA
