Same model may have multiple batches, images only for reference.

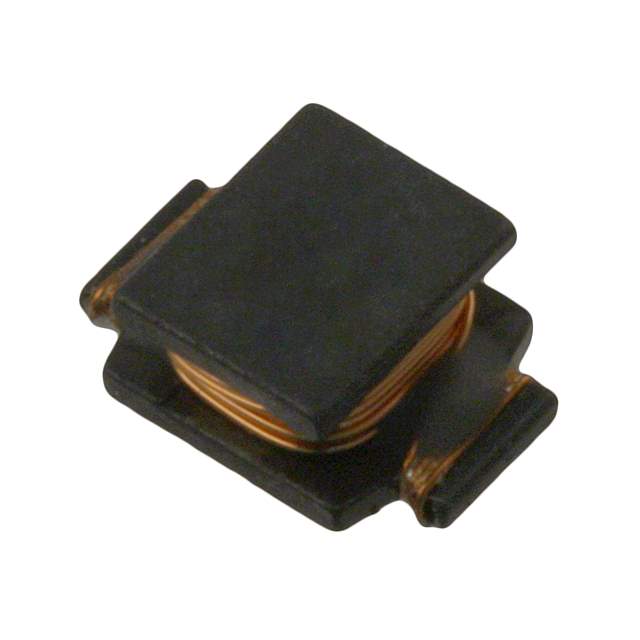

SDR0703-220KL Real Image
Same model may have multiple batches, images only for reference.

SDR0703-220KL

Part No SDR0703-220KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0703-220KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0703
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±10%
Current Rating (Amps) 650 mA
Current - Saturation (Isat) 950mA
Shielding Unshielded
DC Resistance (DCR) 300mOhm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 26MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max) 0.106" (2.70mm)
Base Product Number SDR0703
Other Names SDR0703-220KLCT,SDR0703-220KL,SDR0703220KL,-SDR0703-220KL,-SDR0703-220KLTR,SDR0703-220KLTR,-SDR0703-220KLCT,-SDR0703-220KL
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274741-SDR0703-220KL
Ultra Librarian 3D Model Ultra Librarian SDR0703-220KL CAD Model

Description

The Bourns Inc. SDR0703 series of inductors are wire wound drum core inductors.

  • Package: Tape & Reel (TR), Cut Tape (CT)
  • Inductance: 22 µH
  • Tolerance: ±10%
  • Height: 0.106" (2.70mm)
  • Standard Package Quantity: 500
  • DC Resistance (DCR): 300mOhm Max
  • Q @ Freq: 20 @ 2.52MHz
  • Frequency Self-Resonant: 26MHz
  • Package/Case: Non-Standard
  • Core Material: Ferrite
  • Current Rating: 650 mA
  • Temperature Range: -40°C to 125°C
