Same model may have multiple batches, images only for reference.

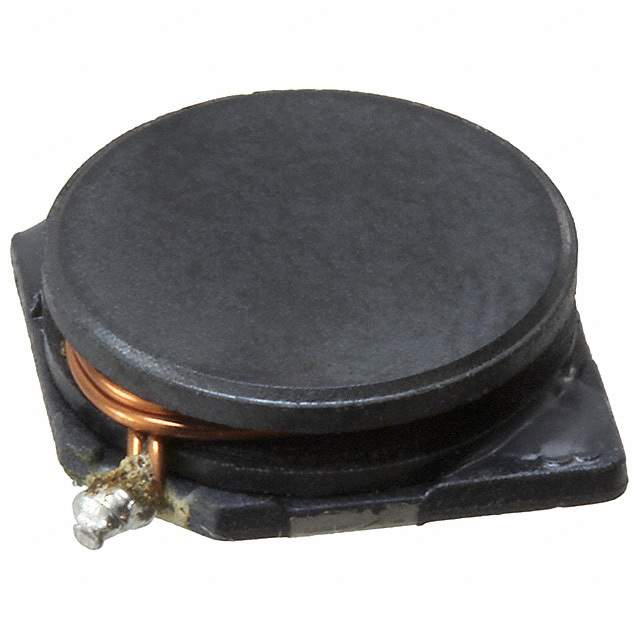

SDR1030-470M Real Image
Same model may have multiple batches, images only for reference.

SDR1030-470M

Part No SDR1030-470M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1030-470M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1030
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 960 mA
Current - Saturation (Isat) 1.1A
Shielding Unshielded
DC Resistance (DCR) 270mOhm Max
Q @ Freq 10 @ 2.52MHz
Frequency - Self Resonant 14.2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SDR1030
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274625-SDR1030-470M
Ultra Librarian 3D Model Ultra Librarian SDR1030-470M CAD Model

Description

The SDR1030-470M is a fixed inductor component that is part of the SDR1030 series.

  • Type: Drum core, wirewound
  • Shielding: Unshielded
  • Package: Tape and reel (TR)
  • Case: Nonstandard
  • Inductance: 47 µH
  • Tolerance: ±20%
  • Height when seated: 0.130" (3.30mm)
  • DC Resistance (DCR): 270mOhm Max
  • Current Rating (Amps): 960 mA
  • Manufacturer: Bourns Inc.
