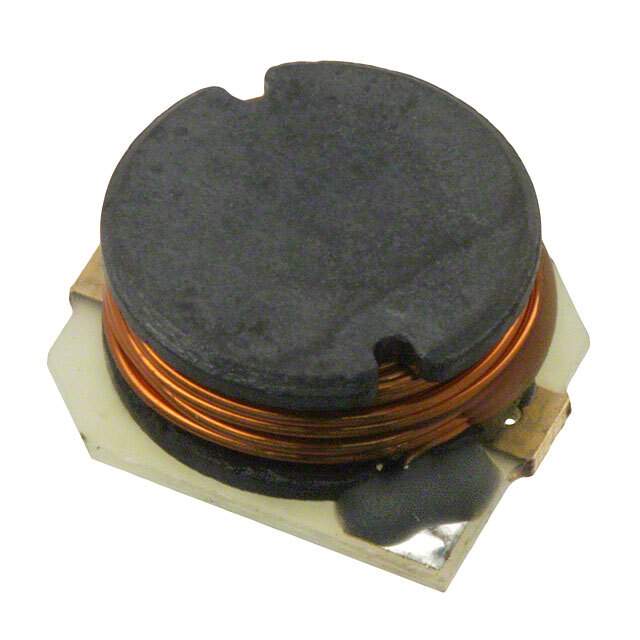

SDR1105-270ML Real Image
Same model may have multiple batches, images only for reference.

SDR1105-270ML

Part No SDR1105-270ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1105-270ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1105
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 27 µH
Tolerance ±20%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 5A
Shielding Unshielded
DC Resistance (DCR) 90mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number SDR1105
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274605-SDR1105-270ML
Ultra Librarian 3D Model Ultra Librarian SDR1105-270ML CAD Model

Description

The SDR1105 drum core, wirewound inductor from Bourns Inc. is a high-quality device designed for AEC-Q200 rated applications.

  • Package: Nonstandard
  • Mounting: SMD (SMT)
  • Inductance: 27 µH
  • Tolerance: ±20%
  • Shielding: Unshielded
  • Standard Package: 800
  • DC Resistance (DCR): 90mOhm Max
  • Current Rating: 2.8A
  • Height: 0.197" (5.00mm)
  • Dimension: 0.437" L x 0.394" W (11.10mm x 10.00mm)
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
