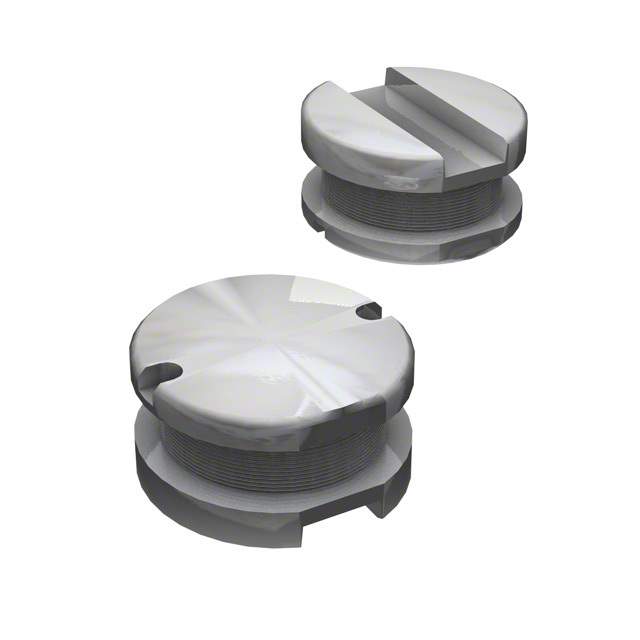

SDR1307-470ML Real Image
Same model may have multiple batches, images only for reference.

SDR1307-470ML

Part No SDR1307-470ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1307-470ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 2.7 A
Current - Saturation (Isat) 4.2A
Shielding Unshielded
DC Resistance (DCR) 82mOhm Max
Q @ Freq 24 @ 2.52MHz
Frequency - Self Resonant 7.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274580-SDR1307-470ML
Ultra Librarian 3D Model Ultra Librarian SDR1307-470ML CAD Model

Description

The SDR1307-470ML is a fixed inductor from Bourns Inc.

  • Type: Drum core, wirewound
  • Shielding: Unshielded
  • Inductance: 47 µH
  • Q @ Freq: 24 @ 2.52MHz
  • Frequency Self-Resonant: 7.5MHz
  • DC Resistance (DCR): 82mOhm Max
  • Standard Package: 400
  • Mounting: SMD (SMT) mountable
  • Tolerance: ±20%
  • Material-Core: Ferrite
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.512 inches L x 0.512 inches W (13.00mm x 13.00mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8504.50.4000
