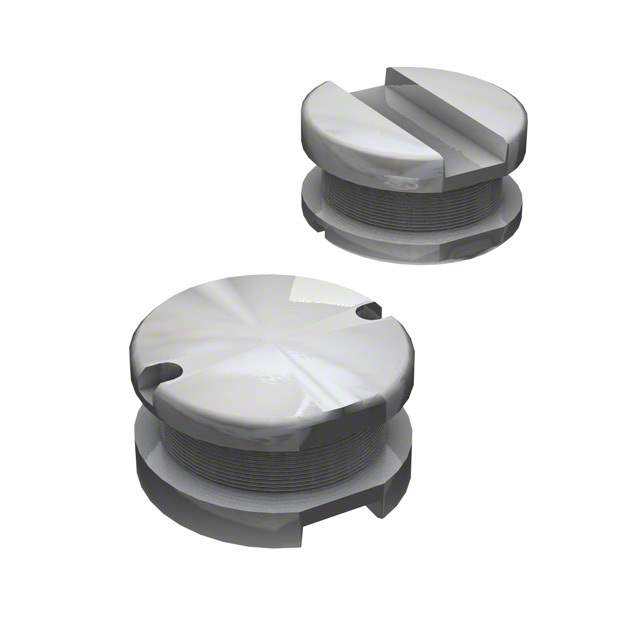

Same model may have multiple batches, images only for reference.

SDR1307-561KL

Name: SDR1307-561KL
Brand: Bourns Inc.
SKU: 1274588
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SDR1307-561KL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SDR1307-561KL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SDR1307
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	560 µH
Tolerance	±10%
Current Rating (Amps)	850 mA
Current - Saturation (Isat)	1.3A
Shielding	Unshielded
DC Resistance (DCR)	880mOhm Max
Q @ Freq	10 @ 796kHz
Frequency - Self Resonant	2MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max)	0.287" (7.30mm)
Base Product Number	SDR1307
Other Names	SDR1307-561KL,SDR1307-561KLTR,SDR1307-561KLCT,SDR1307561KL,SDR1307-561KLDKR
Standard Package	400
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274588-SDR1307-561KL
Ultra Librarian 3D Model	Ultra Librarian SDR1307-561KL CAD Model

Alternative Products

Description

The Bourns Inc. SDR1307-561KL is a high-quality fixed inductor that is designed for use in various electronic devices.

Inductance: 560 µH
Current Rating: 850 mA
