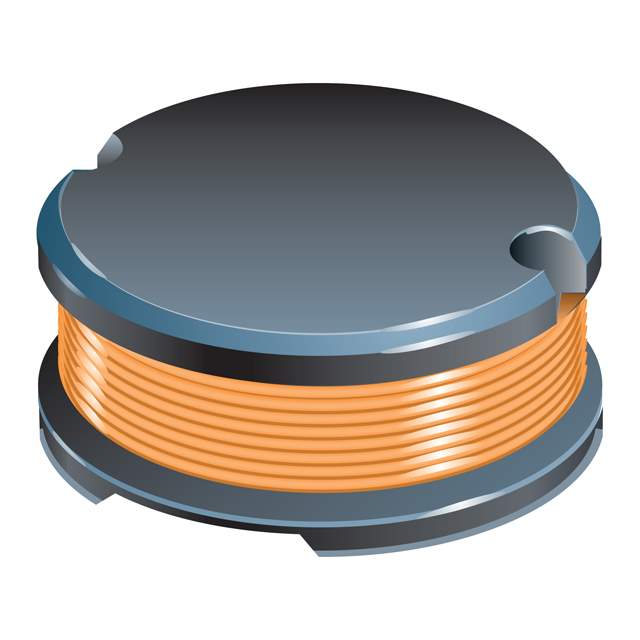

SDR1307A-271K Real Image
Same model may have multiple batches, images only for reference.

SDR1307A-271K

Part No SDR1307A-271K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1307A-271K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 270 µH
Tolerance ±10%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 1.8A
Shielding Unshielded
DC Resistance (DCR) 410mOhm Max
Q @ Freq 15 @ 796kHz
Frequency - Self Resonant 3.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307A
Other Names SDR1307A-271KTR,SDR1307A-271K,SDR1307A-271KCT,SDR1307A-271KDKR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274570-SDR1307A-271K
Ultra Librarian 3D Model Ultra Librarian SDR1307A-271K CAD Model

Description

The SDR1307A-271K is a drum core, wirewound inductor from Bourns Inc.

  • Inductance: 270 µH
  • Tolerance: ±10%
  • Q value: 15 @ 796kHz
  • Self-Resonant Frequency: 3.5MHz
  • Applications: AEC-Q200 rated applications
  • DC Resistance: 410mOhm Max
  • Current Rating: 1.2A
  • Package/Case: Nonstandard
  • Mounting Type: SMD (SMT)
  • Core Material: Ferrite
  • Temperature Range: -40°C to 125°C
  • Standard Package: 400
  • REACH: Unaffected
