Same model may have multiple batches, images only for reference.

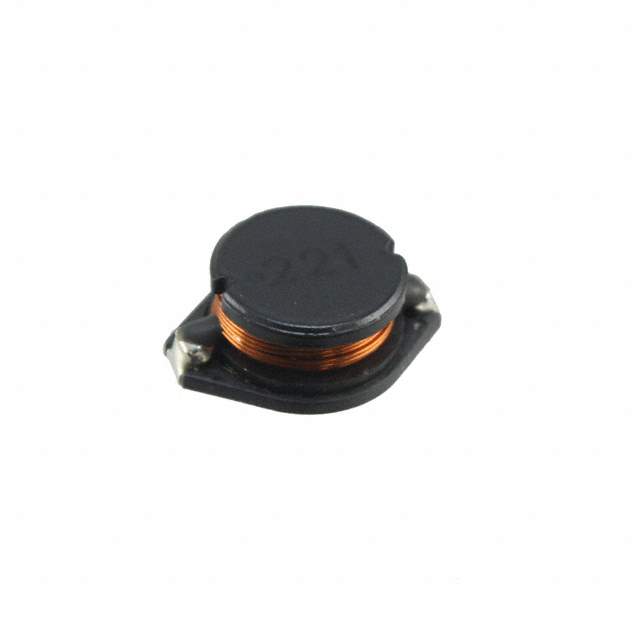

SDR1806-221KL Real Image
Same model may have multiple batches, images only for reference.

SDR1806-221KL

Part No SDR1806-221KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1806-221KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1806
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±10%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 2.2A
Shielding Unshielded
DC Resistance (DCR) 420mOhm Max
Q @ Freq 20 @ 796kHz
Frequency - Self Resonant 4.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max) 0.272" (6.90mm)
Base Product Number SDR1806
Other Names SDR1806-221KLCT,SDR1806-221KLTR,SDR1806221KL,SDR1806-221KL,-SDR1806-221KL,-SDR1806-221KL,-SDR1806-221KLTR,-SDR1806-221KLCT
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274555-SDR1806-221KL
Ultra Librarian 3D Model Ultra Librarian SDR1806-221KL CAD Model

Description

The SDR1806 series from Bourns Inc. is a drum core, wirewound inductor that comes in a tape and reel or cut tape package.

  • Shielding: Unshielded
  • Inductance: 220 µH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Q factor: 20 @ 796 kHz
  • Self-Resonant Frequency: 4.5 MHz
  • DC Resistance (DCR): 420 mOhm
  • Current Rating: 1.1 A
  • Temperature Range: -40°C to 125°C
