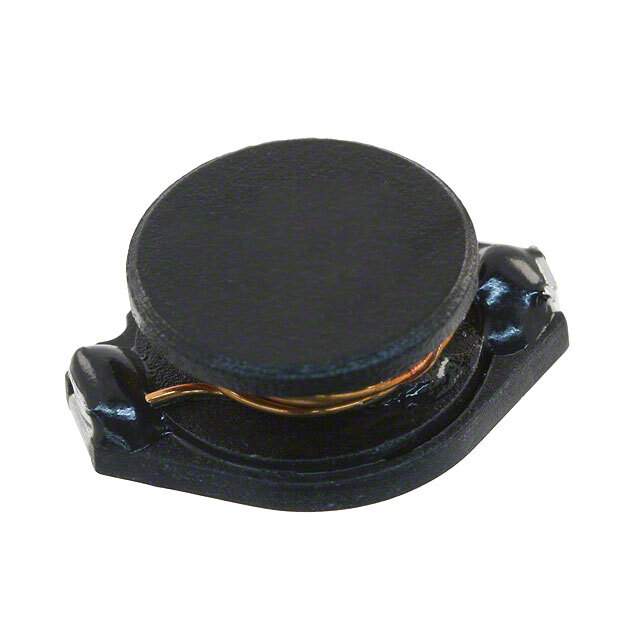

SDR1806-330ML Real Image
Same model may have multiple batches, images only for reference.

SDR1806-330ML

Part No SDR1806-330ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 33UH 3A 68 MOHM SMD / 33 µH Unshielded Drum Core, Wirewound Inductor 3 A 68mOhm Max Nonstandard
Datasheet
SDR1806-330ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 5.4A
Shielding Unshielded
DC Resistance (DCR) 68mOhm Max
Q @ Freq 24 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max) 0.272" (6.90mm)
Base Product Number SDR1806
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SDR1806330ML,SDR1806-330MLCT,-SDR1806-330ML-ND,-SDR1806-330MLCT,SDR1806-330ML-ND,-SDR1806-330MLTR,-SDR1806-330ML,SDR1806-330MLTR
Standard Package 250
Win Source Part Number 1327828-SDR1806-330ML
Ultra Librarian 3D Model Ultra Librarian SDR1806-330ML CAD Model

Description

The Bourns SDR1806-330ML fixed inductor is designed for various electronic applications.

  • Core Type: Wirewound drum core
  • Shielding: Unshielded
  • Size: 0.720 inches L x 0.551 inches W (18.30mm x 14.00mm)
  • Inductance: 33 μH
  • Tolerance: ±20%
  • Height: 0.272 inches (6.90mm) Max
  • Current Rating: 3A
  • Core Material: Ferrite
  • DC Resistance (DCR): 68mOhm max
  • Q @ Freq: 24 @ 2.52MHz
  • Frequency Self-Resonant: 11MHz
  • Operating Temperature: -40°C to 125°C
  • Package: Reel - TR
  • Standard Package: 250 units
