SDR2207-220YL

Part No SDR2207-220YL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR2207
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±15%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 6.5A
Shielding Unshielded
DC Resistance (DCR) 39.4mOhm Max
Q @ Freq 27 @ 3MHz
Frequency - Self Resonant 14MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Max) 0.307" (7.80mm)
Base Product Number SDR2207
Other Names SDR2207-220YLDKR,SDR2207-220YLTR,SDR2207-220YLCT,SDR2207-220YL,SDR2207220YL
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274550-SDR2207-220YL
Ultra Librarian 3D Model Ultra Librarian SDR2207-220YL CAD Model

Description

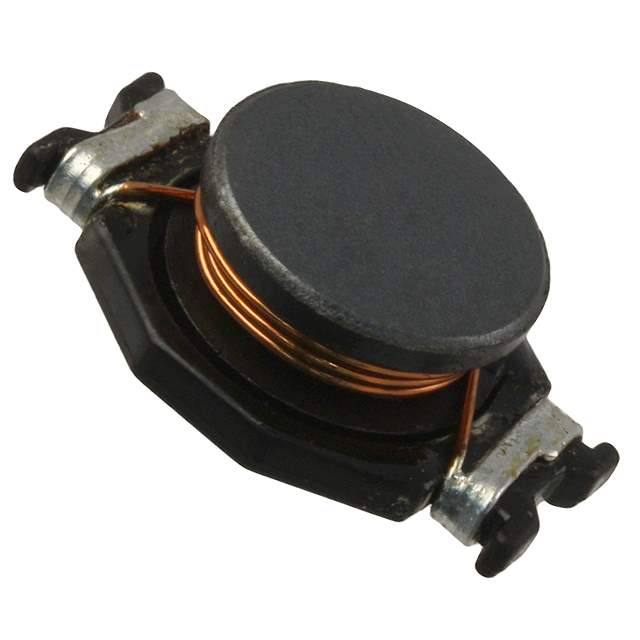

The SDR2207-220YL is a drum core, wirewound inductor with a nonstandard package/case.

  • Manufacturer: Bourns Inc.
  • Inductance: 22 µH
  • Tolerance: ±15%
  • Q @ Freq: 27 @ 3MHz
  • Frequency Self-Resonant: 14MHz
  • DC Resistance (DCR): 39.4mOhm Max
  • Current Rating (Amps): 4 A
  • MSL Level: Unlimited
  • REACH Status: Unaffected
