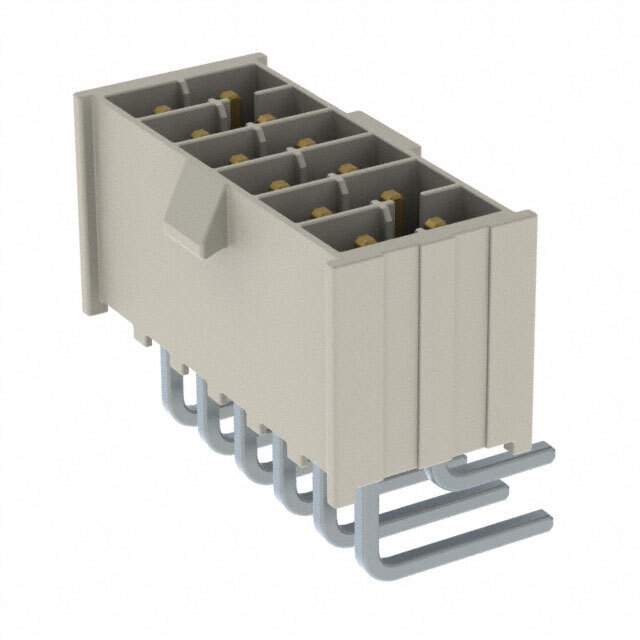

The IPL1-106-01-S-D-RA-K is a header connector from Samtec's IPL1 series, designed for board-to-board connections. This connector features a 1.27mm pitch, surface mount termination, and a right-angle orientation. It's commonly used in applications requiring compact and reliable connections, such as embedded systems, medical devices, and industrial equipment. The 'K' at the end likely refers to a keying option.

Applications

• Board-to-Board Connections
• Embedded Systems
• Medical Devices
• Industrial Equipment
• Data Acquisition Systems

Features

• 1.27mm Pitch: Provides a compact and dense connection.
• Surface Mount Technology (SMT): Facilitates automated assembly.
• Right-Angle Orientation: Allows for perpendicular board connections.
• Dual Row: Provides a higher density of connections.
• Gold-Plated Contacts: Ensures reliable and corrosion-resistant connections.
• Keying Option: Prevents mis-mating and ensures correct orientation.

Benefits

• Compact Design: Enables smaller and more efficient board layouts.
• Reliable Connection: Provides a secure and stable electrical connection.
• Easy Assembly: Compatible with automated manufacturing processes.
• Versatile Application: Suitable for a wide range of board-to-board connections.
• Prevent Mis-mating: The keying option avoids potential damage or malfunction.

Technical Specifications

The IPL1-106-01-S-D-RA-K has 6 contacts per row, for a total of 12 contacts. The voltage and current ratings are specified in the Samtec datasheet. The operating temperature range is typically from -55°C to +125°C. Refer to the Samtec datasheet for precise specifications, including mating details and mechanical dimensions.
