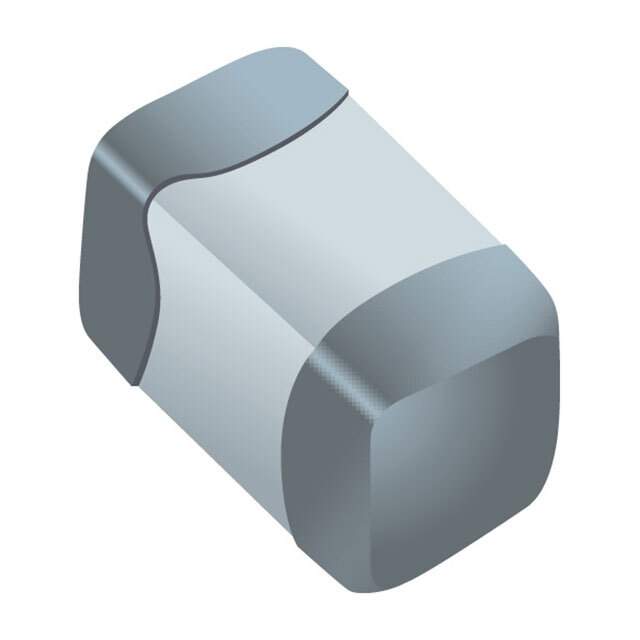

SF-0402S050M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0402S050M-2

Part No SF-0402S050M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0402S050M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0402SxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500 mA
Voltage Rating - DC 24 V
Response Time Slow Blow
Package / Case 0402 (1005 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.004
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.039" L x 0.020" W x 0.020" H (1.00mm x 0.51mm x 0.51mm)
DC Cold Resistance 0.38 Ohms
Base Product Number SF-0402
Other Names SF-0402S050M-2DKR,SF-0402S050M-2TR,SF-0402S050M-2CT
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302170-SF-0402S050M-2
Ultra Librarian 3D Model Ultra Librarian SF-0402S050M-2 CAD Model

Description

The SinglFuse™ SF-0402SxxxM electronic component is a high-quality product designed for use in circuit protection applications.

  • Manufacturer: Unknown
  • Quality and precision: Ensuring maximum performance and reliability
  • Supply and demand status: Limited
  • Popularity: Medium
  • Package: 10,000 (standard)
  • Application: Excellent choice for use in a wide range of circuit protection applications
  • Use: Widely used in the industry.
