Same model may have multiple batches, images only for reference.

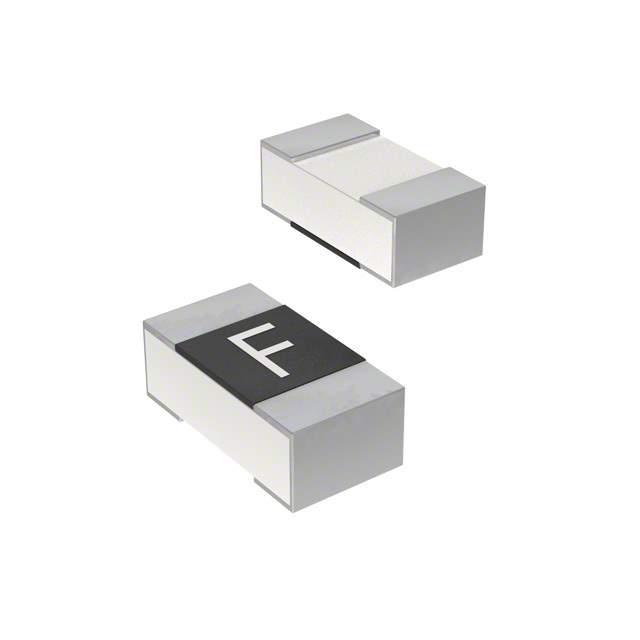

SF-0402S075-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0402S075-2

Part No SF-0402S075-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0402S075-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0402S
Package Tape & Reel (TR)
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 750 mA
Voltage Rating - DC 24 V
Response Time Slow Blow
Package / Case 0402 (1005 Metric)
Breaking Capacity @ Rated Voltage 35A
Approval Agency UL
Temperature Range - Operating -40°C ~ 105°C
Dimension 0.039" L x 0.020" W x 0.014" H (1.00mm x 0.52mm x 0.35mm)
Base Product Number SF-0402
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302175-SF-0402S075-2
Ultra Librarian 3D Model Ultra Librarian SF-0402S075-2 CAD Model

Description

The SinglFuse™ SF-0402S is a circuit protection electronic component that is designed to protect against overcurrents.

  • Response Time: Slow Blow
  • Breaking Capacity: 35A @ rated voltage
  • Voltage Rating: 24V DC
  • Fuse Type: Board Mount
  • Package/Case: 0402 (1005 Metric)
  • Manufacturer: Bourns Inc.
