Same model may have multiple batches, images only for reference.

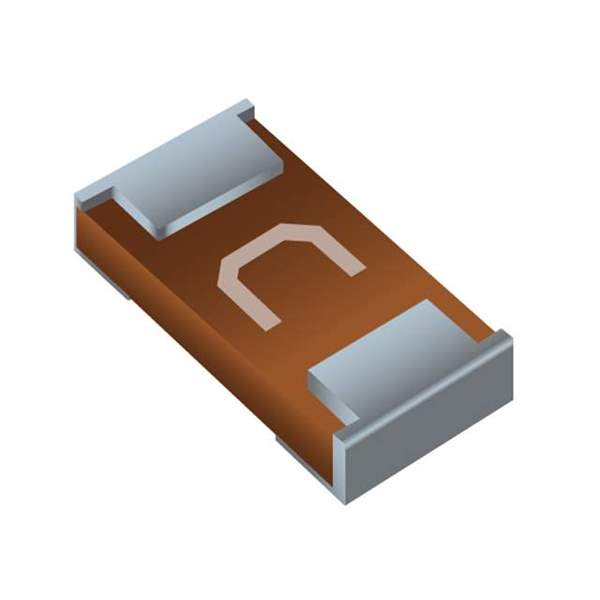

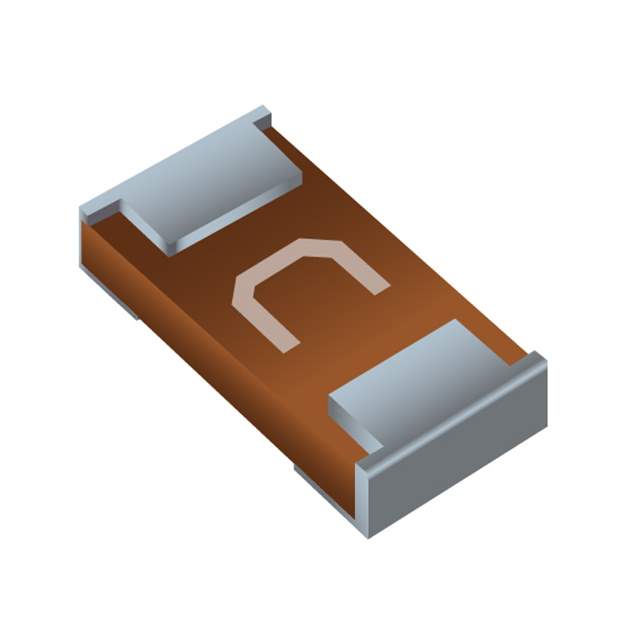

SF-0603HI100F-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603HI100F-2

Part No SF-0603HI100F-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603HI100F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603HIxxxF
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1 A
Voltage Rating - AC 35 V
Voltage Rating - DC 65 V
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A AC, 13A DC
Melting I2t 0.052
Approval Agency UL
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.063" L x 0.032" W x 0.014" H (1.60mm x 0.80mm x 0.36mm)
DC Cold Resistance 0.05 Ohms
Base Product Number SF-0603
Other Names SF-0603HI100F-2DKR,SF-0603HI100F-2CT,SF-0603HI100F-2TR
Standard Package 8,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302141-SF-0603HI100F-2
Ultra Librarian 3D Model Ultra Librarian SF-0603HI100F-2 CAD Model

Description

The SinglFuse SF-0603HI100F-2 is a fuse manufactured by Bourns Inc.

  • Package: Tape and reel
  • Standard Package: 8,000
  • Voltage Rating: 35V AC and 65V DC
  • Response Time: 0.052
  • Breaking Capacity @ Rated Voltage: 50A AC and 13A DC
  • DC Cold Resistance: 0.05 Ohms
  • Current Rating: 1A
  • Temperature Range: -55°C to 90°C
  • ECCN: EAR99
  • MSL Level: 1
