Same model may have multiple batches, images only for reference.

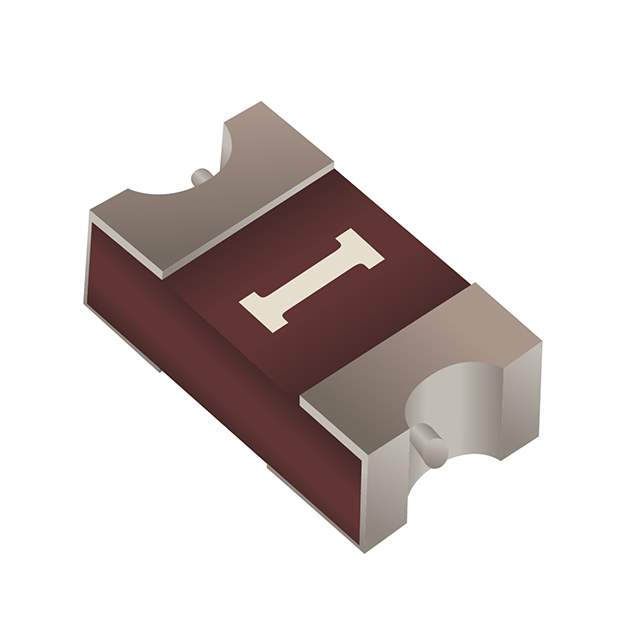

SF-1206S1200W-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206S1200W-2

Part No SF-1206S1200W-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206S1200W-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206SxxxW
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 12 A
Voltage Rating - DC 32 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric), Concave
Breaking Capacity @ Rated Voltage 50A
Melting I2t 15
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.043" H (3.20mm x 1.60mm x 1.10mm)
DC Cold Resistance 0.0041 Ohms
Base Product Number SF-1206
Other Names SF-1206S1200W-2TR,SF-1206S1200W-2DKR,SF-1206S1200W-2CT
Standard Package 3,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302036-SF-1206S1200W-2
Ultra Librarian 3D Model Ultra Librarian SF-1206S1200W-2 CAD Model

Description

The SinglFuse SF-1206SxxxW is a slow-blow board mount fuse designed for circuit protection in electronic devices. With a voltage rating of 32 V DC and a breaking capacity of 50A, it is suitable for use in a wide range of applications.

  • Voltage Rating: 32 V DC
  • Breaking Capacity: 50A
  • Melting I2t: 15
  • DC Cold Resistance: 0.0041 Ohms
  • Package: 1206 (3216 Metric), concave
  • Dimensions: 0.126" L x 0.063" W x 0.043" H (3.20mm x 1.60mm x 1.10mm)
  • Mounting: SMD (SMT) technology
  • Series: SF-1206 series
  • Packaging: Tape & reel
  • Standard Package: 3,500 units
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99 compliant
  • Manufacturer: Bourns Inc.
