Same model may have multiple batches, images only for reference.

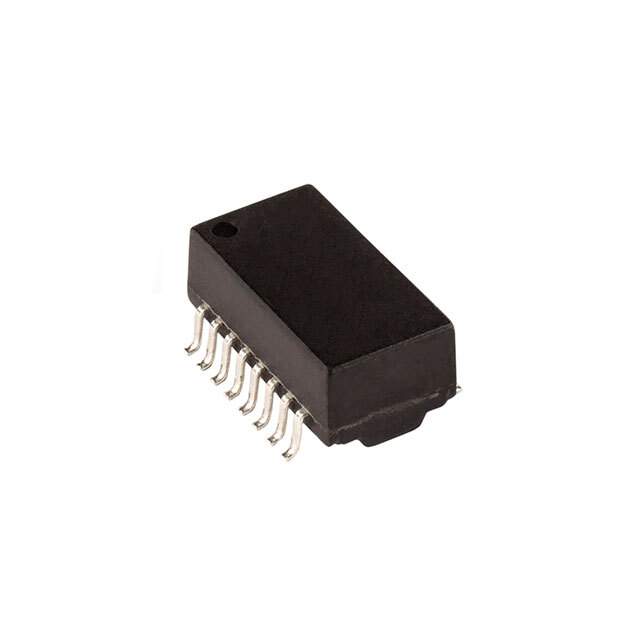

SM13100EL Real Image
Same model may have multiple batches, images only for reference.

SM13100EL

Part No SM13100EL
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description LAN 10/100 BASE T XFORMER 250VRM / 350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT
Datasheet
SM13100EL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Series Automotive, AEC-Q200, SM
Package Tape & Reel
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Height - Seated (Max) 0.504" (12.80mm)
Temperature Range - Operating -40°C ~ 85°C
Other Names SM13100ELTR,SM13100ELCT,SM13100ELDKR
Standard Package 160
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232759-SM13100EL
Ultra Librarian 3D Model Ultra Librarian SM13100EL CAD Model

Description

The SM13100EL is a pulse transformer from Bourns Inc., designed for LAN 10/100 Base-T applications.

  • Series: Automotive, AEC-Q200, SM series
  • Package: Tape & reel package
  • Inductance: 350μH
  • Height: 0.504 inches
  • Standard Package: 160
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99 compliant
