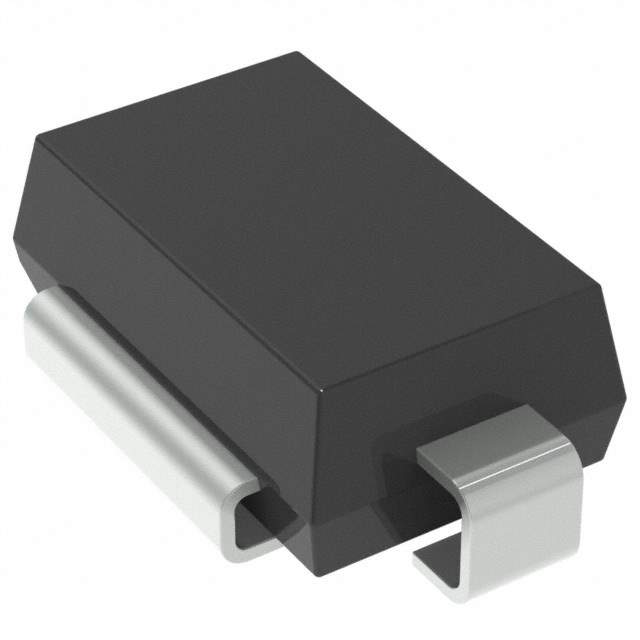

SM8S22A-Q Real Image
Same model may have multiple batches, images only for reference.

SM8S22A-Q

Part No SM8S22A-Q
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Datasheet
SM8S22A-Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Series Automotive, AEC-Q101, SM8SF-Q
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 24.4V
Voltage - Clamping (Max) @ Ipp 35.5V
Current - Peak Pulse (10/1000µs) 186A
Power - Peak Pulse 6600W (6.6kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case DO-218AB
Supplier Device Package DO-218
Base Product Number SM8S2
Standard Package 750
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1301545-SM8S22A-Q
Ultra Librarian 3D Model Ultra Librarian SM8S22A-Q CAD Model

Description

The SM8S22A-Q is a Zener type TVS diode with a reverse standoff voltage of 22V and a breakdown voltage of 24.4V.

  • Type: Zener
  • Voltage - Reverse Standoff: 22V
  • Voltage - Breakdown: 24.4V
  • Package: Surface mount
  • Operating Temperature: -55°C to 175°C
  • Category: Circuit Protection
  • Series: SM8SF-Q and Automotive, AEC-Q101
  • Standard Package: 750 units
  • HTSUS Category: 8541.10.0080
  • REACH: REACH affected
