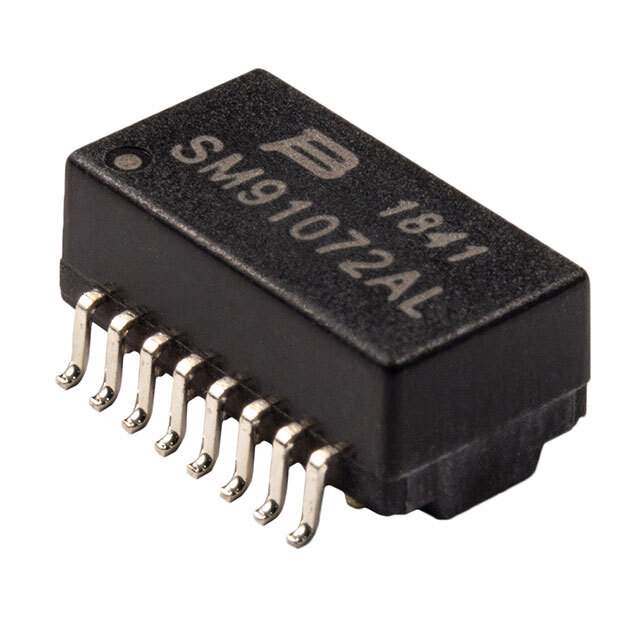

SM91072AL-E Real Image
Same model may have multiple batches, images only for reference.

SM91072AL-E

Part No SM91072AL-E
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description XFMR LAN 10/100 BASE-T 1:1 350UH  /  350µH LAN 10/100 Base-T Pulse Transformer 1:1 Surface Mount
Datasheet
SM91072AL-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Series Automotive, AEC-Q200, SM
Package Tape & Reel
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.504" L x 0.272" W (12.80mm x 6.90mm)
Height - Seated (Max) 0.222" (5.65mm)
Temperature Range - Operating -40°C ~ 125°C
Base Product Number SM91072
Other Names 118-SM91072AL-ECT,118-SM91072AL-EDKR,118-SM91072AL-ETR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232760-SM91072AL-E
Ultra Librarian 3D Model Ultra Librarian SM91072AL-E CAD Model

Description

Bourns Inc. presents the SM91072AL-E pulse transformer, which is a LAN 10/100 Base-T transformer.

  • Series: Automotive, AEC-Q200, SM series
  • Package: Tape & Reel
  • Inductance: 350µH
  • Height: 0.222" (5.65mm)
  • Standard Package: 3,000 units
  • Mounting: SMD (SMT)
  • Operating Temperature Range: -40°C to 125°C
  • Dimension: 0.504" L x 0.272" W (12.80mm x 6.90mm)
  • ECCN: EAR99
  • REACH: Unaffected
