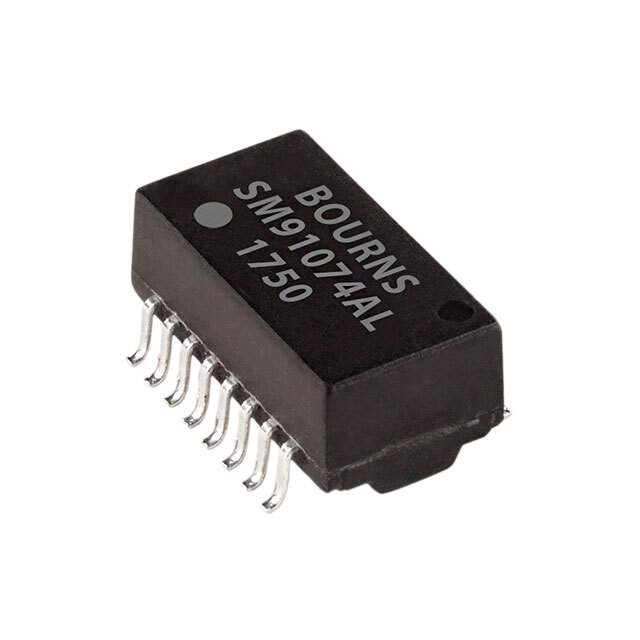

SM91074AL-E Real Image
Same model may have multiple batches, images only for reference.

SM91074AL-E

Part No SM91074AL-E
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description 10/100 BASE T XFORMER AECQ +125  /  Pulse Transformer
Datasheet
SM91074AL-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Series Automotive, AEC-Q200
Package Tape & Reel
Base Product Number SM9107
Other Names 118-SM91074AL-ETR,SM91074ALEDKR,SM91074ALECT,SM91074ALEDKR,SM91074ALETR,118-SM91074AL-EDKR,SM91074ALECT,SM91074ALETR,118-SM91074AL-ECT,SM91074ALE
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232758-SM91074AL-E
Ultra Librarian 3D Model Ultra Librarian SM91074AL-E CAD Model

Description

The Bourns Inc SM91074AL-E is a pulse transformer that is designed to provide a stable and reliable performance.

  • Series: Automotive, AEC-Q200 series
  • Packaging: Tape & reel format
  • Manufacturer: Bourns Inc
