Same model may have multiple batches, images only for reference.

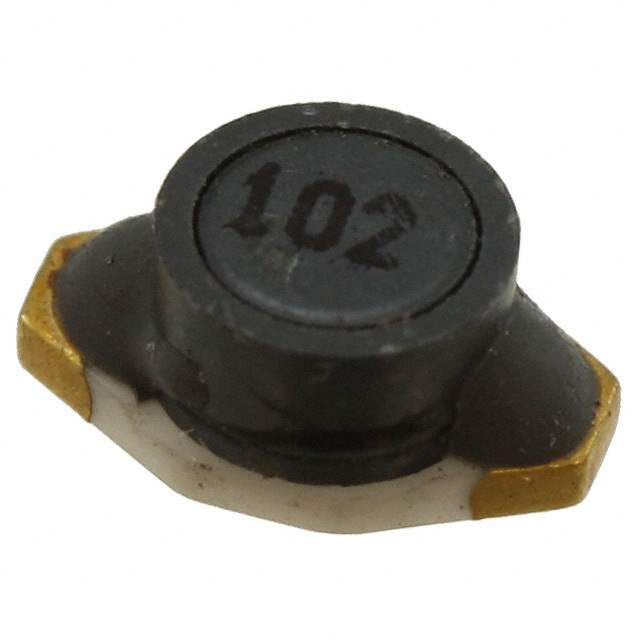

SRE6603-102M Real Image
Same model may have multiple batches, images only for reference.

SRE6603-102M

Part No SRE6603-102M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRE6603-102M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRE6603
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 mH
Tolerance ±20%
Current Rating (Amps) 150 mA
Current - Saturation (Isat) 45mA
Shielding Shielded
DC Resistance (DCR) 3.4Ohm Max
Q @ Freq 40 @ 100kHz
Frequency - Self Resonant 2MHz
Temperature Range - Operating -25°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max) 0.115" (2.92mm)
Base Product Number SRE6603
Other Names SRE6603-102MTR,SRE6603-102MDKR,SRE6603102M,SRE6603-102MCT
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274470-SRE6603-102M
Ultra Librarian 3D Model Ultra Librarian SRE6603-102M CAD Model

Description

The Bourns Inc. SRE6603-102M is a fixed inductor that is designed for use in various electronic applications.

  • Manufacturer: Bourns Inc.
  • Series: SRE6603
  • Type: drum core, wirewound
  • Shielding: Shielding
  • Inductance: 1mH
  • Height Seated (Max): 0.115 inches (2.92mm)
  • Standard Package: 2,000
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: ferrite
  • Q @ Freq: 40 @ 100kHz
  • Frequency Self-Resonant: 2MHz
  • Package / Case: nonstandard
  • DC Resistance (DCR): 3.4Ohm Max
  • Temperature Range: -25°C ~ 105°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 150mA
  • Inductance Frequency-Test: 100kHz
  • HTSUS: 8504.50.4000
