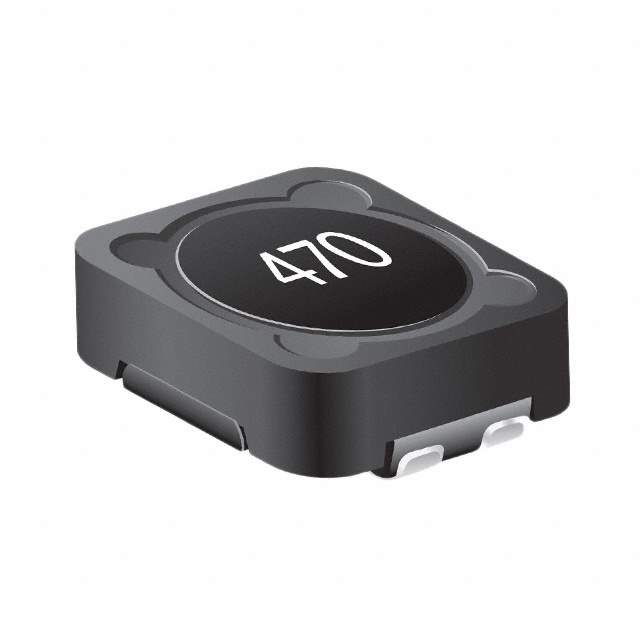

Same model may have multiple batches, images only for reference.

SRF0703A-8R2M

Name: SRF0703A-8R2M
Brand: Bourns Inc.
SKU: 1275001
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRF0703A-8R2M
Manufacturer	Bourns Inc.
Catalog	Arrays, Signal Transformers
Datasheet	SRF0703A-8R2M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr	Bourns Inc.
Series	SRF0703A
Package	Tape & Reel
Number of Coils	2
Inductance - Connected In Parallel	8.2 µH
Inductance - Connected In Series	34.1 µH
Tolerance	±20%
Current Rating - Parallel	2.19 A
Current Rating - Series	1.1 A
Current Saturation - Parallel	2.66 A
Current Saturation - Series	1.33 A
DC Resistance (DCR) - Parallel	77.2mOhm Max
DC Resistance (DCR) - Series	306mOhm Max
Shielding	Shielded
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.299" L x 0.299" W (7.60mm x 7.60mm)
Height	0.142" (3.60mm)
Base Product Number	SRF0703A
Other Names	SRF0703A-8R2MDKR,SRF0703A-8R2MCT,SRF0703A-8R2MTR
Standard Package	1,500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1275001-SRF0703A-8R2M
Ultra Librarian 3D Model	Ultra Librarian SRF0703A-8R2M CAD Model

Description

The SRF0703A-8R2M from Bourns Inc. is an array of signal transformers that come in a tape and reel package.

Shielded: Yes
Number of Coils: 2
Inductance (Series): 34.1 µH
Inductance (Parallel): 8.2 µH
Tolerance: ±20%
Height: 0.142" (3.60mm)
Other Names: SRF0703A-8R2MDKR, SRF0703A-8R2MCT, and SRF0703A-8R2MTR
Operating Temperature Range: -40°C ~ 125°C
REACH: Unaffected
