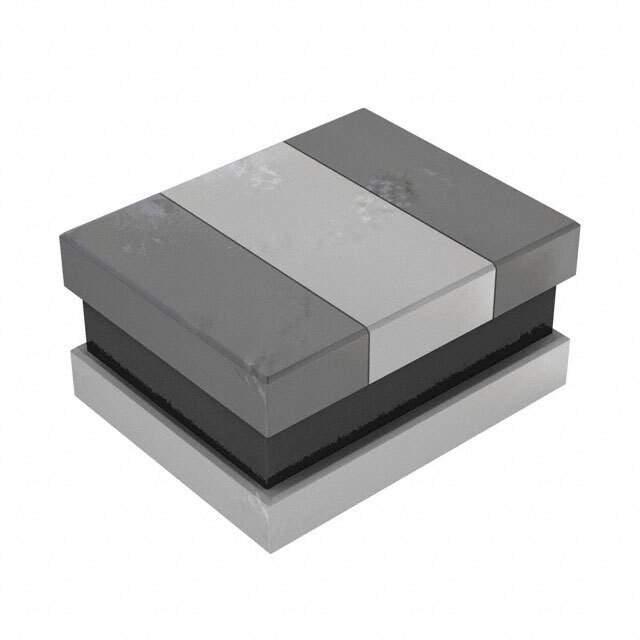

SRN2510-R24M Real Image
Same model may have multiple batches, images only for reference.

SRN2510-R24M

Part No SRN2510-R24M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2510-R24M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2510
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 240 nH
Tolerance ±20%
Current Rating (Amps) 3.1 A
Current - Saturation (Isat) 4.3A
Shielding Semi-Shielded
DC Resistance (DCR) 42mOhm Max
Q @ Freq 8 @ 1MHz
Frequency - Self Resonant 210MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.040" (1.02mm)
Base Product Number SRN2510
Other Names SRN2510-R24MTR,SRN2510-R24MCT,SRN2510-R24MDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274410-SRN2510-R24M
Ultra Librarian 3D Model Ultra Librarian SRN2510-R24M CAD Model

Description

The Bourns Inc. SRN2510-R24M is a fixed inductor that belongs to the SRN2510 series.

  • Inductance: 240 nH
  • Tolerance: ±20%
  • Package: Tape and reel
  • Shielding: Semi-shielded
  • Height: 0.040 inches
  • Standard Package: 2,000
  • Q factor: 8 @ 1 MHz
  • EAR99: Yes
  • MSL Level: 1
  • REACH: Unaffected
  • HTSUS Code: 8504.50.4000
