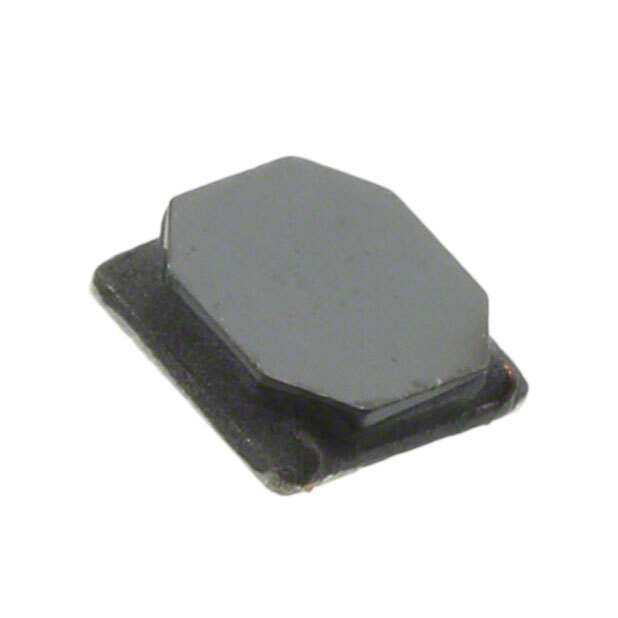

SRN4012T-100M Real Image
Same model may have multiple batches, images only for reference.

SRN4012T-100M

Part No SRN4012T-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN4012T-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4012T
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 800mA
Shielding Semi-Shielded
DC Resistance (DCR) 180mOhm
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 30MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRN4012T
Other Names SRN4012T-100M-CT,SRN4012T-100M-TR,SRN4012T-100M-DKR
Standard Package 4,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274356-SRN4012T-100M
Ultra Librarian 3D Model Ultra Librarian SRN4012T-100M CAD Model

Description

The Bourns Inc. SRN4012T series fixed inductor is a drum core, wirewound inductor with a semi-shielded package type.

  • Inductance: 10 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 180mOhm
  • Current Rating: 1.1A
  • Frequency Self-Resonant: 30MHz
  • Q @ Freq: 10 @ 100kHz
  • Operating Temperature: -40°C to 125°C
  • Package Type: Nonstandard
  • Dimensions: 0.157" L x 0.157" W (4.00mm x 4.00mm)
