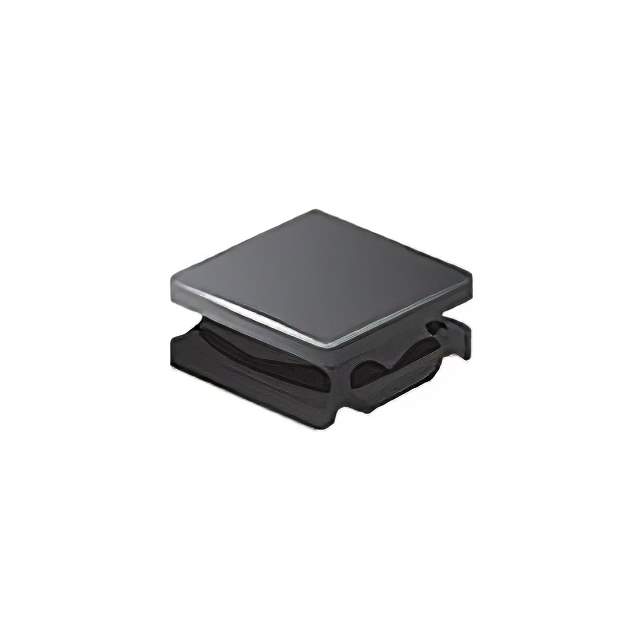

SRN4018-R82Y Real Image
Same model may have multiple batches, images only for reference.

SRN4018-R82Y

Part No SRN4018-R82Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN4018-R82Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4018
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 820 nH
Tolerance ±30%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 4.7A
Shielding Semi-Shielded
DC Resistance (DCR) 19mOhm Max
Q @ Freq 9 @ 7.96MHz
Frequency - Self Resonant 100MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.071" (1.80mm)
Base Product Number SRN4018
Other Names SRN4018-R82YCT,SRN4018-R82YDKR,SRN4018R82Y,SRN4018-R82YTR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274339-SRN4018-R82Y
Ultra Librarian 3D Model Ultra Librarian SRN4018-R82Y CAD Model

Description

The SRN4018 drum core, wirewound inductor from Bourns Inc. is a high-quality inductor that is ideal for a range of electronic applications.

  • Inductance: 820 nH
  • Current Rating: 4 A
  • Tolerance: ±30%
  • Package/Case: Nonstandard
  • Mounting Type: SMD (SMT)
  • Shielding: Semi-Shielded
  • Temperature Range: -40°C to 125°C
  • Standard Package: 3000 units
  • Packaging: Tape and Reel
  • Height: 0.071" (1.80mm)
  • Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm)
