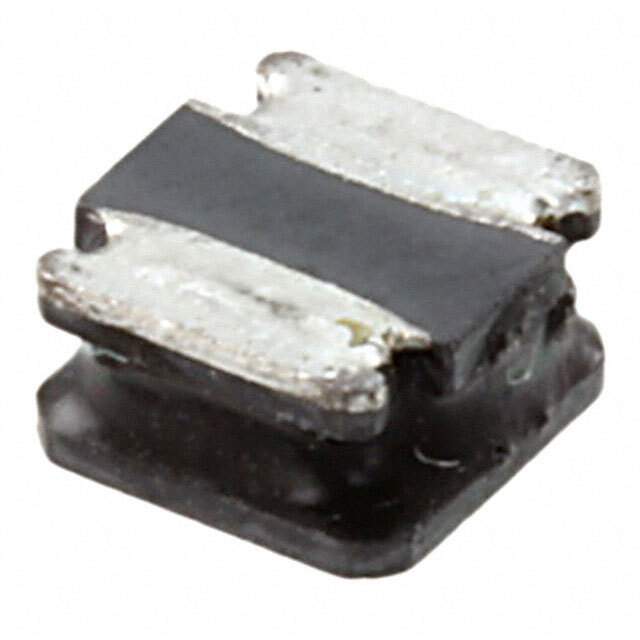

SRN4026-680M Real Image
Same model may have multiple batches, images only for reference.

SRN4026-680M

Part No SRN4026-680M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN4026-680M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN4026
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 350 mA
Current - Saturation (Isat) 350mA
Shielding Semi-Shielded
DC Resistance (DCR) 852mOhm Max
Q @ Freq 19 @ 2.52MHz
Frequency - Self Resonant 9MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.098" (2.50mm)
Base Product Number SRN4026
Other Names SRN4026-680MTR,SRN4026-680MDKR,SRN4026-680MCT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274318-SRN4026-680M
Ultra Librarian 3D Model Ultra Librarian SRN4026-680M CAD Model

Description

The SRN4026-680M fixed inductor from Bourns Inc. is semi-shielded and has a drum core, wirewound type.

  • Package: Tape and Reel
  • Standard Package: 3,000
  • Inductance: 68 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 852mOhm Max
  • Q @ Freq: 19 @ 2.52MHz
  • Current Rating: 350mA
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 125°C
  • Package / Case: Nonstandard
  • REACH: Unaffected
  • Current Saturation: 350mA
