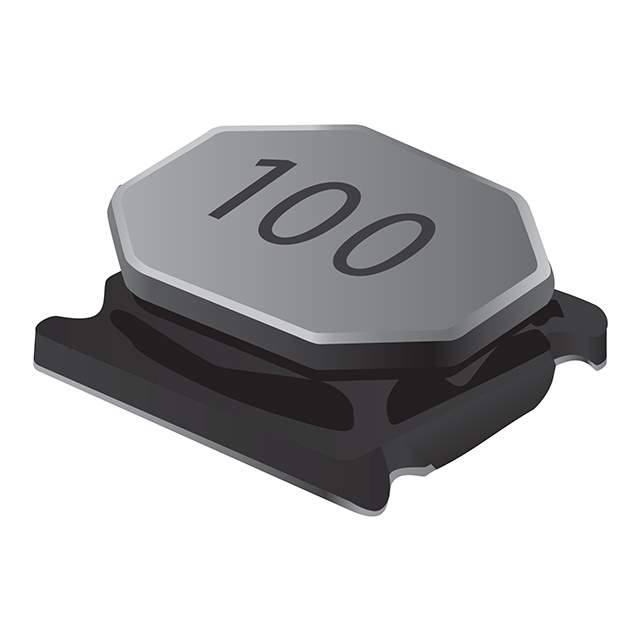

SRN5020TA-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRN5020TA-4R7M

Part No SRN5020TA-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN5020TA-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN5020TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 2.4 A
Current - Saturation (Isat) 2.7A
Shielding Semi-Shielded
DC Resistance (DCR) 60mOhm
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 58MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRN5020TA
Other Names SRN5020TA-4R7MTR,SRN5020TA-4R7MCT,SRN5020TA-4R7MDKR
Standard Package 2,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274303-SRN5020TA-4R7M
Ultra Librarian 3D Model Ultra Librarian SRN5020TA-4R7M CAD Model

Description

The SRN5020TA-4R7M inductor is a semi-shielded fixed inductor designed by Bourns Inc.

  • Inductance: 4.7 μH
  • Tolerance: ±20%
  • DC Resistance: 60mOhm
  • Current Rating: 2.4 A
  • Q @ Freq: 15 @ 100kHz
  • Frequency Self-Resonant: 58MHz
  • Package Dimensions: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • Mounting: SMD (SMT)
  • Core: Ferrite
  • Standard: Nonstandard
  • Operating Temperature Range: -55°C ~ 125°C
  • ECCN: EAR99 compliant
