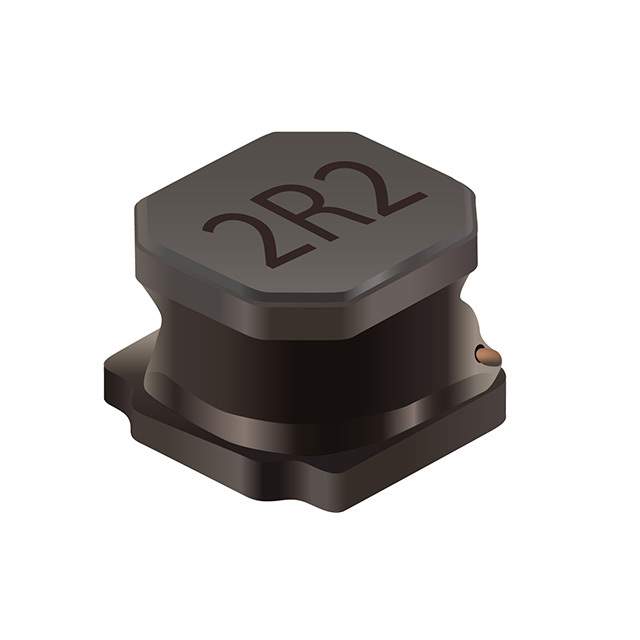

SRN5040TA-150M Real Image
Same model may have multiple batches, images only for reference.

SRN5040TA-150M

Part No SRN5040TA-150M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN5040TA-150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN5040TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 1.8 A
Current - Saturation (Isat) 2A
Shielding Semi-Shielded
DC Resistance (DCR) 80mOhm
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 22MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.195" L x 0.195" W (4.95mm x 4.95mm)
Height - Seated (Max) 0.161" (4.10mm)
Base Product Number SRN5040TA
Other Names SRN5040TA-150MDKR,SRN5040TA-150MCT,SRN5040TA-150MTR
Standard Package 1,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274294-SRN5040TA-150M
Ultra Librarian 3D Model Ultra Librarian SRN5040TA-150M CAD Model

Description

The Bourns Inc. SRN5040TA-150M is a fixed inductor with a drum core, wirewound type and 15µH inductance.

  • Shielding: Semi-shielded
  • Core Material: Ferrite
  • Inductance: 15µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 80mOhm
  • AEC-Q200 Ratings: Rated
  • Q @ Freq: 15 @ 100kHz
  • Frequency Self-Resonant: 22MHz
  • Dimension: 0.195" L x 0.195" W (4.95mm x 4.95mm)
  • Mounting: SMD (SMT)
  • Current Rating: 1.8A
