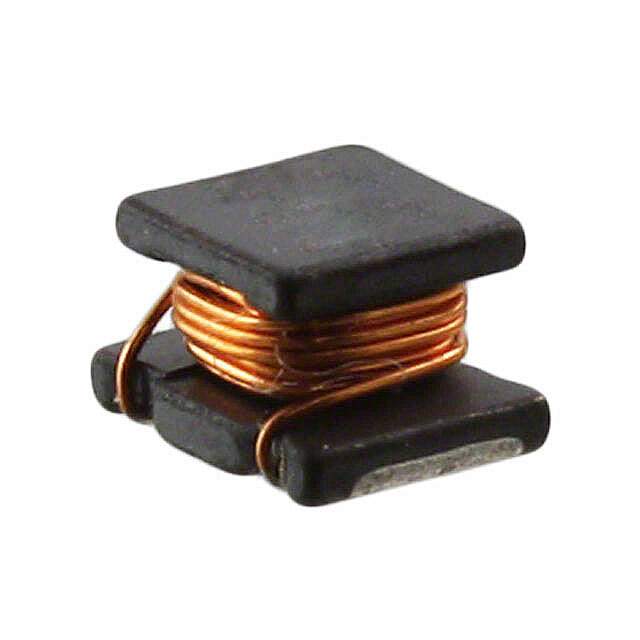

SRN6028-3R0Y Real Image
Same model may have multiple batches, images only for reference.

SRN6028-3R0Y

Part No SRN6028-3R0Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN6028
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3 µH
Tolerance ±30%
Current Rating (Amps) 3.4 A
Current - Saturation (Isat) 3.6A
Shielding Semi-Shielded
DC Resistance (DCR) 30mOhm Max
Q @ Freq 12 @ 7.96MHz
Frequency - Self Resonant 46MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.110" (2.80mm)
Base Product Number SRN6028
Other Names SRN6028-3R0YDKR,SRN6028-3R0YTR,SRN6028-3R0YCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274283-SRN6028-3R0Y
Ultra Librarian 3D Model Ultra Librarian SRN6028-3R0Y CAD Model

Description

The SRN6028 series inductor from Bourns Inc. is a semi-shielded fixed inductor with an inductance of 3 µH.

  • Tolerance: ±30%
  • DC Resistance: 30mOhm Max
  • Q @ Freq: 12 @ 7.96MHz
  • Frequency Self-Resonant: 46MHz
  • Package/Case: Non-standard
  • Height Seated (max): 0.110" (2.80mm)
  • Current Rating: 3.4A
  • Mounting: SMD (SMT)
