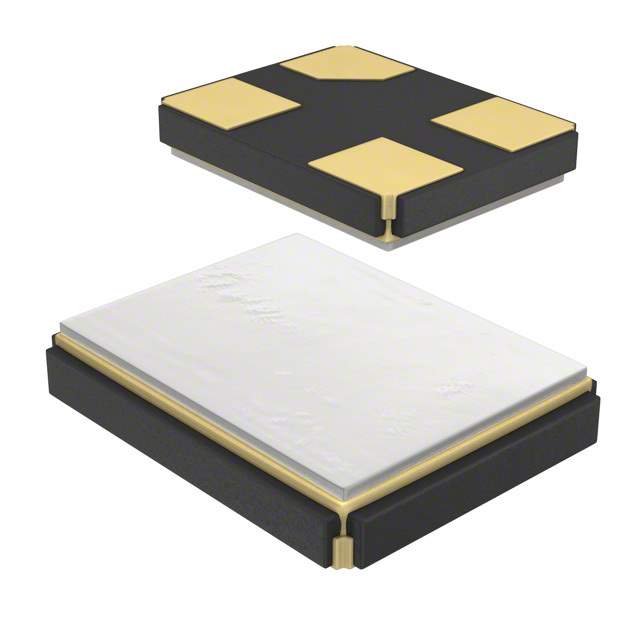

NZ2520SB-32.768KHZ-NSA3534C Real Image
Same model may have multiple batches, images only for reference.

NZ2520SB-32.768KHZ-NSA3534C

Part No NZ2520SB-32.768KHZ-NSA3534C
Manufacturer NDK
Catalog Oscillators
Description XTAL OSC XO 32.7680KHZ CMOS SMD / 32.768 kHz XO (Standard) CMOS Oscillator 1.8V Standby (Power Down) 4-SMD, No Lead
Datasheet
NZ2520SB-32.768KHZ-NSA3534C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr NDK America, Inc.
Series NZ2520S
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 32.768 kHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.8V
Frequency Stability ±30ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 260µA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 50157520,NZ2520SB32768KHZNSA3534C,644-1197-6,644-1197-1,644-1197-2
Standard Package 3,000
Win Source Part Number 979222-NZ2520SB-32.768KHZ-NSA3534C
Ultra Librarian 3D Model Ultra Librarian NZ2520SB-32.768KHZ-NSA3534C CAD Model

Description

The NDK America, Inc. NZ2520SB-32.768KHZ-NSA3534C is a crystal oscillator manufactured by NDK America, Inc.

  • Series: NZ2520S
  • Frequency: 32.768 kHz
  • Frequency Stability: ±30ppm
  • Current Supply: 260μA
  • Current Supply (Disable): 10μA
  • Voltage: 1.8V
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
