Same model may have multiple batches, images only for reference.

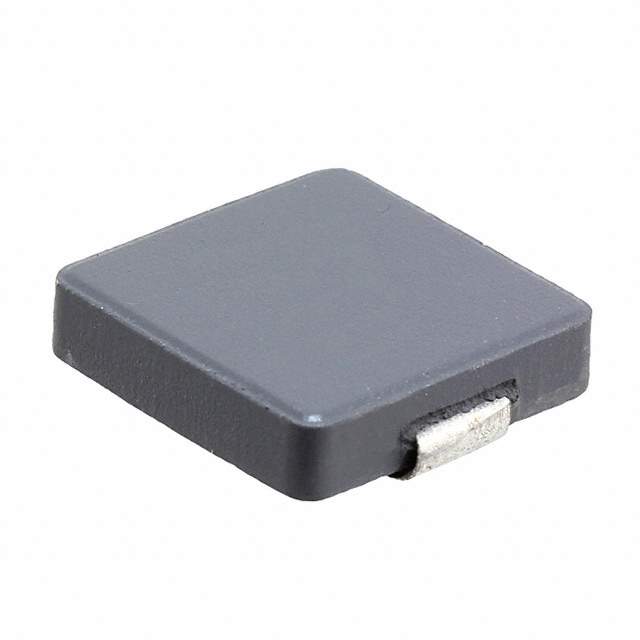

SRP1238A-R47M Real Image
Same model may have multiple batches, images only for reference.

SRP1238A-R47M

Part No SRP1238A-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1238A-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1238A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 32 A
Current - Saturation (Isat) 55A
Shielding Shielded
DC Resistance (DCR) 1.8mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 80MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SRP1238A
Other Names 2266-SRP1238A-R47M,SRP1238A-R47MCT,SRP1238A-R47MDKR,SRP1238A-R47MTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274085-SRP1238A-R47M
Ultra Librarian 3D Model Ultra Librarian SRP1238A-R47M CAD Model

Description

The Bourns Inc. SRP1238A-R47M is a drum core, wirewound fixed inductor with a shielding of carbonyl powder material.

  • Inductance: 470 nH
  • Tolerance: ±20%
  • Package/Case: Nonstandard
  • Mounting: SMD (SMT)
  • Q @ Freq: 10 @ 100kHz
  • Frequency Self-Resonant: 80MHz
  • DC Resistance (DCR): 1.8mOhm Max
  • Current Rating: 32A
  • Temperature Range: -40°C ~ 150°C
  • Packaging: Tape & reel
  • Height: 0.138" (3.50mm)
The SRP1238A-R47M is a reliable component for use in various electronic applications.
