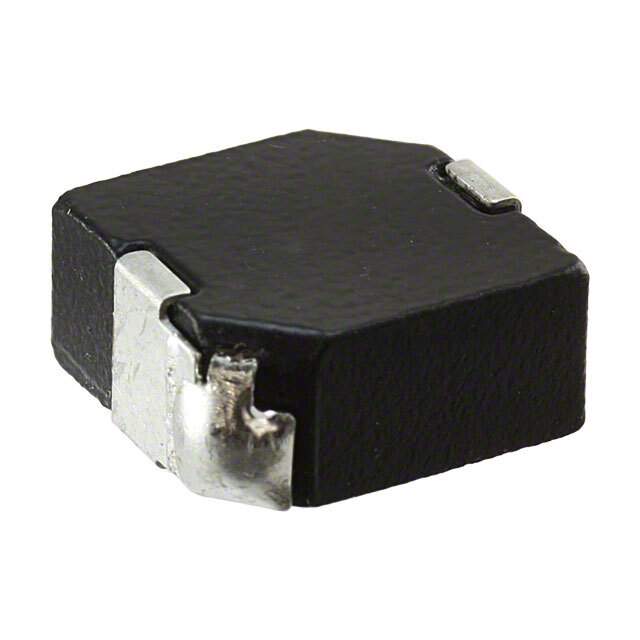

SRP1270-R32M Real Image
Same model may have multiple batches, images only for reference.

SRP1270-R32M

Part No SRP1270-R32M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1270-R32M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1270
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Iron
Inductance 320 nH
Tolerance ±20%
Current Rating (Amps) 46 A
Current - Saturation (Isat) 65A
Shielding Shielded
DC Resistance (DCR) 0.9mOhm Max
Frequency - Self Resonant 95MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.539" L x 0.539" W (13.70mm x 13.70mm)
Height - Seated (Max) 0.276" (7.00mm)
Base Product Number SRP1270
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274022-SRP1270-R32M
Ultra Librarian 3D Model Ultra Librarian SRP1270-R32M CAD Model

Description

The Bourns Inc. SRP1270 inductor is a high-quality electronic component that has an inductance of 320 nH.

  • Type: Drum core, wirewound
  • Shielded: Yes
  • Tolerance: +/-20%
  • DC Resistance (DCR): 0.9mOhm Max
  • Current Rating: 46 A
  • Frequency of Self-Resonant: 95 MHz
  • Inductance Frequency-Test: 100 kHz
  • Mounting Technology: SMD (SMT)
  • Package/Case: Non-standard
  • Temperature Range: -55 degrees Celsius to 125 degrees Celsius
  • ECCN: EAR99 compliant
  • Rated: AEC-Q200
  • Q @ Freq: 15 @ 1MHz
  • Suitable for: Fixed inductors
