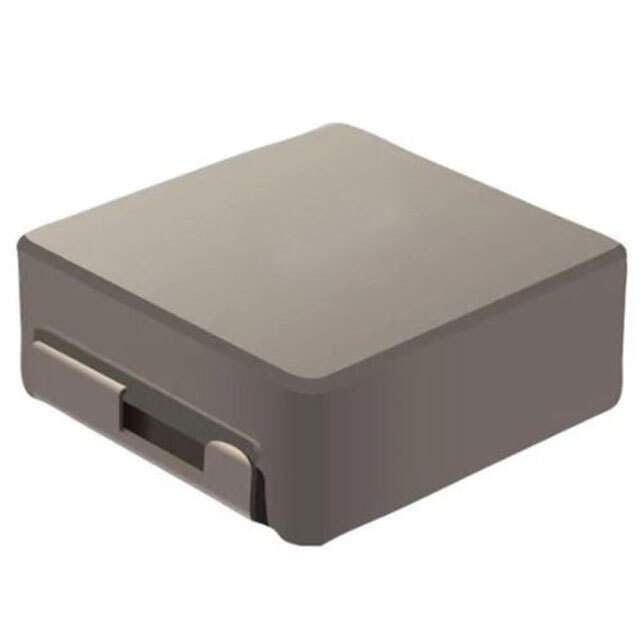

Same model may have multiple batches, images only for reference.

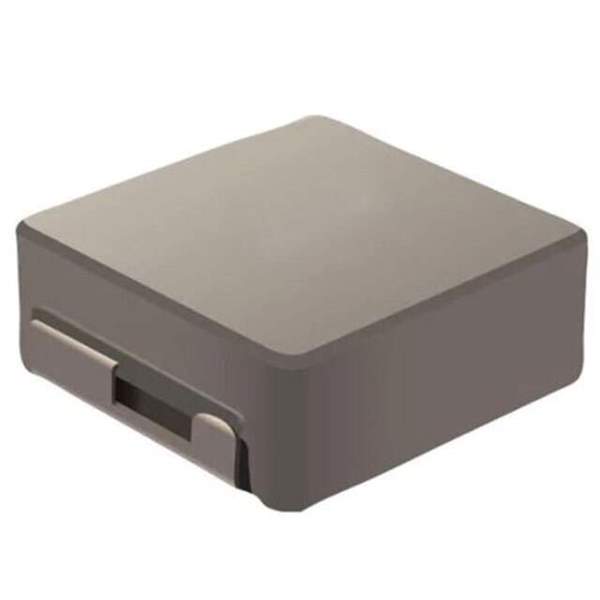

SRP1770C-R47M Real Image
Same model may have multiple batches, images only for reference.

SRP1770C-R47M

Part No SRP1770C-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1770C-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1770C
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 60 A
Current - Saturation (Isat) 115A
Shielding Shielded
DC Resistance (DCR) 0.83mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 28MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.701" L x 0.665" W (17.80mm x 16.90mm)
Height - Seated (Max) 0.276" (7.00mm)
Other Names SRP1770C-R47MDKR,SRP1770C-R47MCT,SRP1770C-R47MTR
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274013-SRP1770C-R47M
Ultra Librarian 3D Model Ultra Librarian SRP1770C-R47M CAD Model

Description

The SRP1770C-R47M is a type of drum core, wirewound fixed inductor that belongs to the SRP1770C series.

  • Manufacturer: Bourns Inc.
  • Inductance: 470 nH
  • Tolerance: ±20%
  • Applications: Various electronic devices that require filtering or energy storage, such as power supplies and DC-DC converters.
  • Current Rating: 60 A
  • Frequency Self-Resonant: 28MHz
