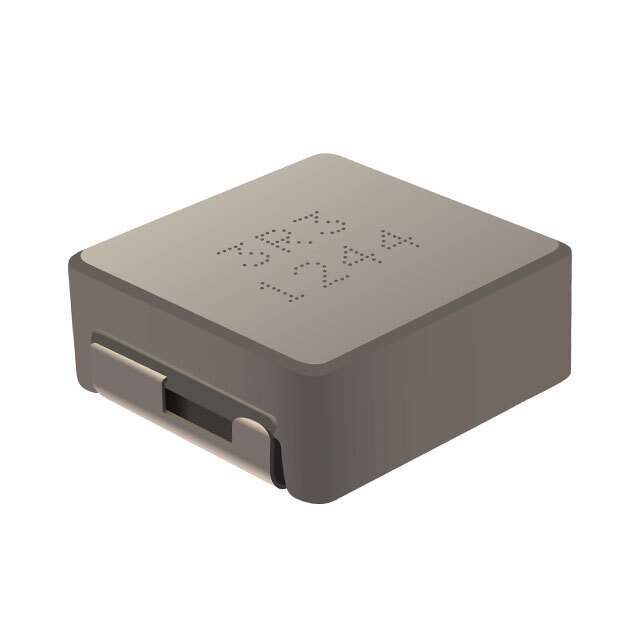

Same model may have multiple batches, images only for reference.

SRP1770TA-8R2M

Name: SRP1770TA-8R2M
Brand: Bourns Inc.
SKU: 1274008
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1770TA-8R2M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP1770TA-8R2M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1770TA
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	8.2 µH
Tolerance	±20%
Current Rating (Amps)	18 A
Current - Saturation (Isat)	25A
Shielding	Shielded
DC Resistance (DCR)	10.8mOhm Max
Q @ Freq	20 @ 100kHz
Frequency - Self Resonant	10MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.665" L x 0.665" W (16.90mm x 16.90mm)
Height - Seated (Max)	0.276" (7.00mm)
Base Product Number	SRP1770TA
Other Names	SRP1770TA-8R2MDKR,SRP1770TA-8R2MCT,SRP1770TA-8R2MTR
Standard Package	200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1274008-SRP1770TA-8R2M
Ultra Librarian 3D Model	Ultra Librarian SRP1770TA-8R2M CAD Model

Alternative Products

Description

The SRP1770TA series is a drum core, wirewound type of fixed inductor that is shielded with an inductance of 8.2 µH and a tolerance of ±20%.

Height Seated: 0.276" (7.00mm)
DC Resistance: 10.8mOhm
Package: Tape and Reel
Standard Package: 200
Mounting: SMD (SMT)
Material Core: Carbonyl Powder
Temperature Range: -40°C ~ 150°C
ECCN: EAR99
Dimension: 0.665" L x 0.665" W (16.90mm x 16.90mm)
Current Rating: 18A
Inductance Frequency Test: 100 kHz
