Same model may have multiple batches, images only for reference.

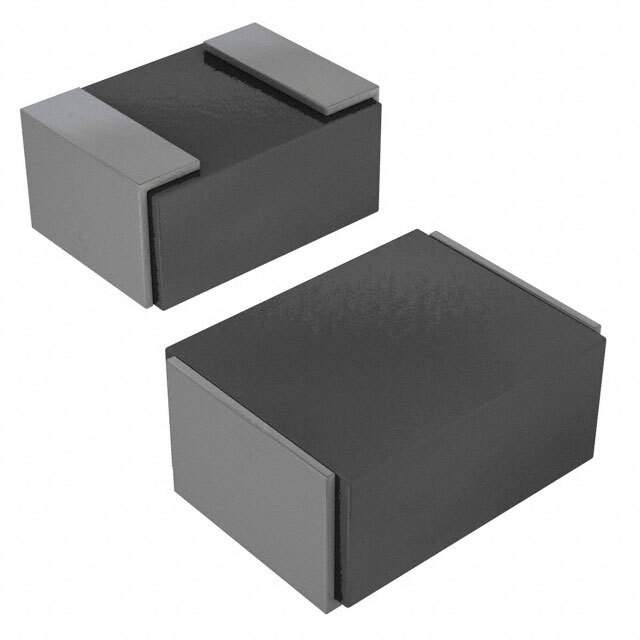

SRP2010-R24M Real Image
Same model may have multiple batches, images only for reference.

SRP2010-R24M

Part No SRP2010-R24M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP2010-R24M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP2010
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 240 nH
Tolerance ±20%
Current Rating (Amps) 4.5 A
Current - Saturation (Isat) 5.6A
Shielding Shielded
DC Resistance (DCR) 21mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.037" (0.95mm)
Base Product Number SRP2010
Other Names SRP2010-R24MTR,SRP2010-R24MCT,SRP2010-R24MDKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274005-SRP2010-R24M
Ultra Librarian 3D Model Ultra Librarian SRP2010-R24M CAD Model

Description

The SRP2010-R24M is a shielded fixed inductor from Bourns Inc.

  • Inductance: 240 nH
  • Tolerance: ±20%
  • Core Material: Iron powder
  • DC Resistance (DCR): 21mOhm Max
  • Package / Case: 0806 (2016 Metric)
  • Temperature Range: -40°C ~ 125°C
  • Current Rating: 4.5 A
  • Package: Tape and reel
