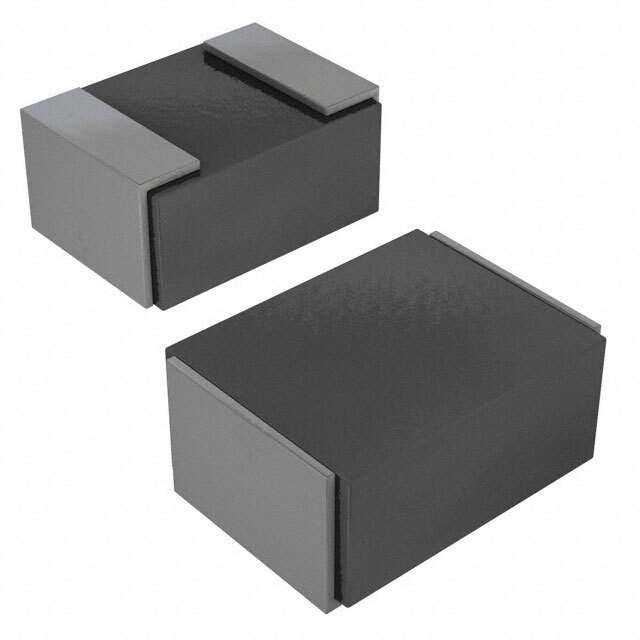

Same model may have multiple batches, images only for reference.

SRP2512-1R0M

Name: SRP2512-1R0M
Brand: Bourns Inc.
SKU: 1273998
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP2512-1R0M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP2512-1R0M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP2512
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron Powder
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	3.4 A
Current - Saturation (Isat)	3.4A
Shielding	Shielded
DC Resistance (DCR)	49mOhm Max
Q @ Freq	39 @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008
Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.047" (1.20mm)
Base Product Number	SRP2512
Other Names	SRP2512-1R0MCT,SRP2512-1R0MTR,SRP2512-1R0MDKR
Standard Package	3,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273998-SRP2512-1R0M
Ultra Librarian 3D Model	Ultra Librarian SRP2512-1R0M CAD Model

Alternative Products

Description

The Bourns Inc. SRP2512 series drum core, wirewound inductor is designed to store energy in a magnetic field.

Inductance: 1 µH
Maximum Current: 3.4A
Shielded: Yes
Mounting: SMD (SMT)
Q @ Freq: 39 @ 1MHz
DC Resistance (DCR): 49mOhm Max
Temperature Range: -40°C to 125°C
Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
ECCN: EAR99
REACH: Unaffected
