Same model may have multiple batches, images only for reference.

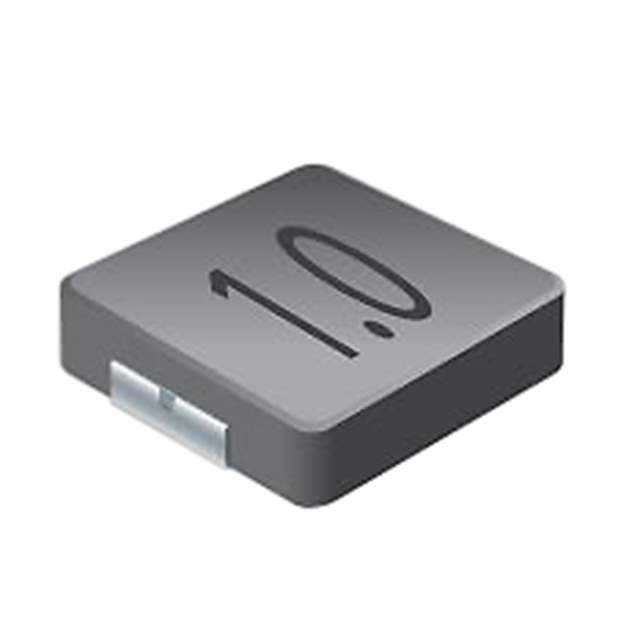

SRP3012TA-100M Real Image
Same model may have multiple batches, images only for reference.

SRP3012TA-100M

Part No SRP3012TA-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP3012TA-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP3012TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.4A
Shielding Shielded
DC Resistance (DCR) 550mOhm Max
Frequency - Self Resonant 23MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRP3012TA
Other Names SRP3012TA-100MTR,SRP3012TA-100MCT,SRP3012TA-100MDKR
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273977-SRP3012TA-100M
Ultra Librarian 3D Model Ultra Librarian SRP3012TA-100M CAD Model

Description

The SRP3012TA-100M is a shielded drum core wirewound inductor from Bourns Inc.

  • Inductance: 10 µH
  • Tolerance: ±20%
  • Current: 1 A
  • DC Resistance: 550 mOhm maximum
  • Core Material: Carbonyl powder
  • Self-Resonant Frequency: 23 MHz
  • Packaging: Tape and reel
  • Height: 0.047 inches (1.20 mm)
  • Temperature Range: -40°C to 150°C
  • Rating: AEC-Q200 compliant
