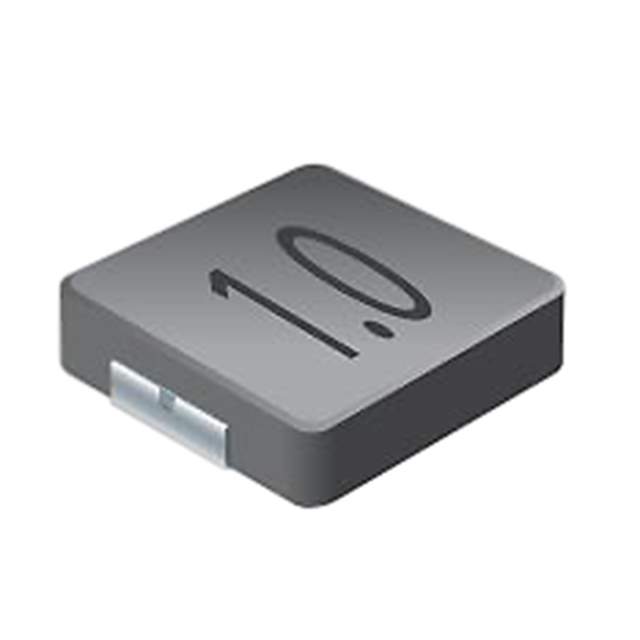

SRP3012TA-R82M Real Image
Same model may have multiple batches, images only for reference.

SRP3012TA-R82M

Part No SRP3012TA-R82M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP3012TA-R82M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP3012TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 820 nH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 5.8A
Shielding Shielded
DC Resistance (DCR) 48mOhm Max
Frequency - Self Resonant 71MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRP3012TA
Other Names SRP3012TA-R82MDKR,SRP3012TA-R82MTR,SRP3012TA-R82MCT
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273966-SRP3012TA-R82M
Ultra Librarian 3D Model Ultra Librarian SRP3012TA-R82M CAD Model

Description

The SRP3012TA-R82M is a drum core, wirewound fixed inductor manufactured by Bourns Inc. It is a part of the Inductors, Coils, Chokes>Fixed Inductors category and is shielded. This component has an inductance of 820 nH, a tolerance of ±20%, and a maximum DCR of 48mOhm. Its current rating is 3.5A, and it has a saturation current of 5.8A. It comes in tape and reel packaging with a standard package of 4,000.
