Same model may have multiple batches, images only for reference.

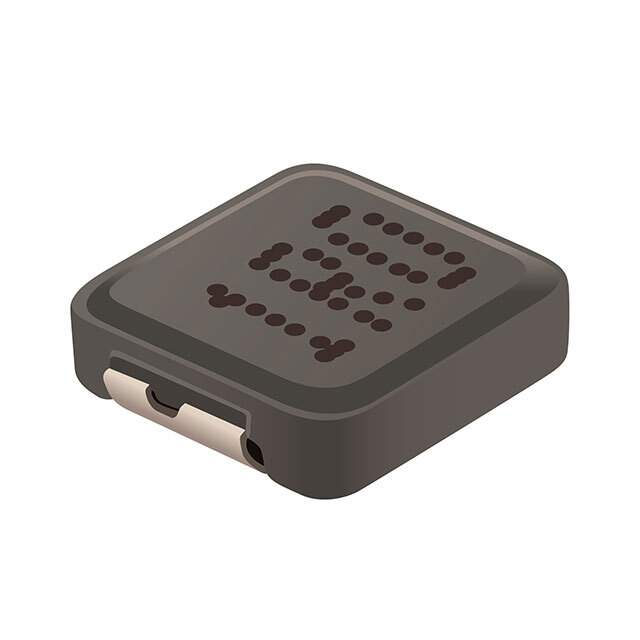

SRP5015TA-5R6M Real Image
Same model may have multiple batches, images only for reference.

SRP5015TA-5R6M

Part No SRP5015TA-5R6M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP5015TA-5R6M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP5015TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 5.6 µH
Tolerance ±20%
Current Rating (Amps) 2.4 A
Current - Saturation (Isat) 3.2A
Shielding Shielded
DC Resistance (DCR) 152mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 27MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number SRP5015TA
Other Names SRP5015TA-5R6MTR,SRP5015TA-5R6MDKR,SRP5015TA-5R6MCT
Standard Package 3,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273905-SRP5015TA-5R6M
Ultra Librarian 3D Model Ultra Librarian SRP5015TA-5R6M CAD Model

Description

The SRP5015TA-5R6M is a drum core, wirewound inductor from Bourns Inc.

  • Type: Drum core, wirewound
  • Shielding: Shielded
  • Package: Nonstandard
  • Inductance: 5.6 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 152mOhm max
  • Current Rating: 2.4 A
  • Height: 0.059" (1.50mm)
  • Dimension: 0.224" L x 0.205" W (5.70mm x 5.20mm)
  • AEC-Q200: Rated
  • Material: Carbonyl powder
  • Frequency Self-Resonant: 27MHz
  • Mounting: SMD (SMT)
  • REACH: Unaffected
