Same model may have multiple batches, images only for reference.

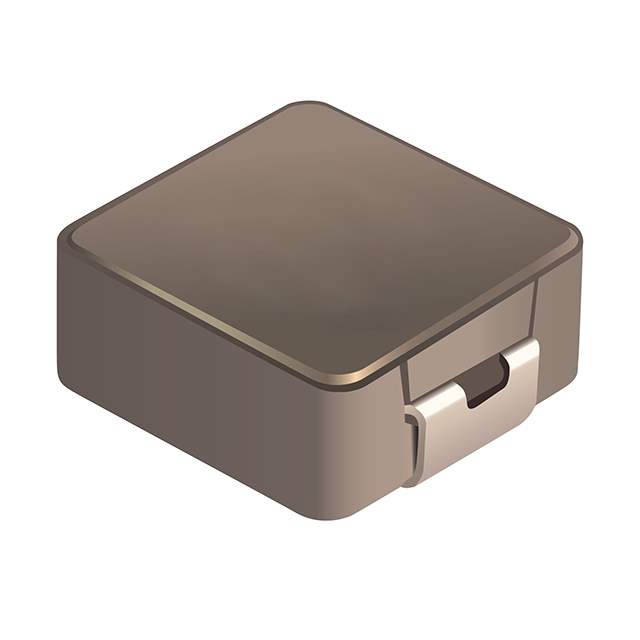

SRP6030VA-R56M Real Image
Same model may have multiple batches, images only for reference.

SRP6030VA-R56M

Part No SRP6030VA-R56M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP6030VA-R56M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP6030VA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 560 nH
Tolerance ±20%
Current Rating (Amps) 19 A
Current - Saturation (Isat) 20A
Shielding Shielded
DC Resistance (DCR) 4.8mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 56MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 180°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.280" L x 0.260" W (7.10mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Other Names 118-SRP6030VA-R56MCT,118-SRP6030VA-R56MDKR,118-SRP6030VA-R56MTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273828-SRP6030VA-R56M
Ultra Librarian 3D Model Ultra Librarian SRP6030VA-R56M CAD Model

Description

The SRP6030VA inductor is a shielded, fixed inductor from Bourns Inc.

  • Inductance: 560 nH
  • Tolerance: ±20%
  • Core Material: Metal
  • DC Resistance: 4.8 mOhm max
  • Q @ Freq: 10 @ 100kHz
  • Frequency of Self-Resonant: 56MHz
  • Operating Temperature: -55°C to 180°C
  • Package/Case: Nonstandard
  • Mounting Type: SMD (SMT)
  • Packaging: Tape & Reel
  • Standard Package: 1,000
