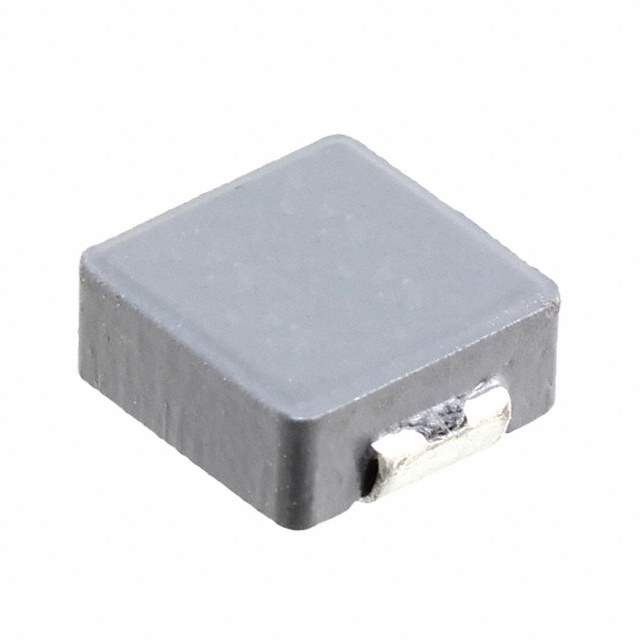

SRP7028C-8R2M Real Image
Same model may have multiple batches, images only for reference.

SRP7028C-8R2M

Part No SRP7028C-8R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP7028C-8R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7028C
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 8.2 µH
Tolerance ±20%
Current Rating (Amps) 4.1 A
Current - Saturation (Isat) 6.8A
Shielding Shielded
DC Resistance (DCR) 66mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 15MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.280" L x 0.260" W (7.10mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Other Names SRP7028C-8R2MTR,SRP7028C-8R2MDKR,SRP7028C-8R2MCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273795-SRP7028C-8R2M
Ultra Librarian 3D Model Ultra Librarian SRP7028C-8R2M CAD Model

Description

The SRP7028C-8R2M is a drum core, wirewound inductor belonging to the SRP7028C series.

  • Shielding: Shielded
  • Tolerance: ±20%
  • Q @ Freq: 15 @ 100kHz
  • Frequency Self-Resonant: 15MHz
  • Package: Nonstandard
  • DC Resistance (DCR): 66mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Inductance: 8.2μH
  • Current Rating (Amps): 4.1A
  • Package: Tape and reel
