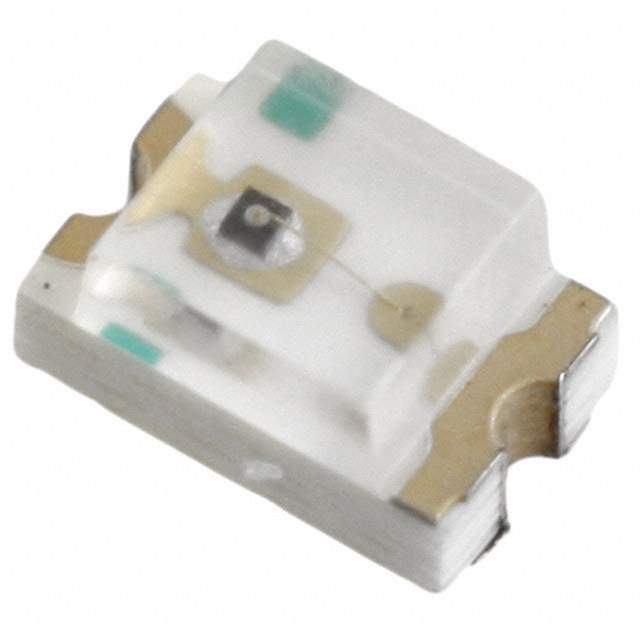

SML-LX0805SUGC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX0805SUGC-TR

Part No SML-LX0805SUGC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 0805 SMD
Datasheet
SML-LX0805SUGC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lumex Opto/Components Inc.
Packaging Reel - TR
Status Active
Color Green
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 45mcd
Lens Style/Size Rectangle with Flat Top, 1.40mm x 1.25mm
Forward Voltage 2.2V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Peak 574nm
Height (Max) 1.20mm
Win Source Part Number 029408-SML-LX0805SUGC-TR
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Communications & Networking, LED Lighting, Industrial
Ultra Librarian 3D Model Ultra Librarian SML-LX0805SUGC-TR CAD Model

Description

The SML-LX0805SUGC-TR is a green SMD LED component from Lumex Opto/Components Inc. with a viewing angle of 140 degrees and a millicandela rating of 45mcd.

  • Viewing Angle: 140 degrees
  • Millicandela Rating: 45mcd
  • Forward Voltage: 2.2V
  • Current-Test: 20mA
  • Mounting: Surface-Mounting
  • Package/Case: Rectangular
  • Lens Size: 1.40mm x 1.25mm
  • Application: Optoelectronics
