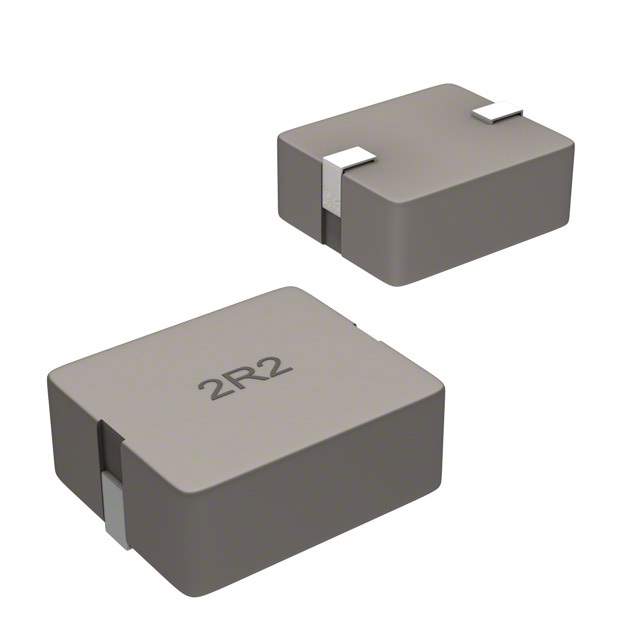

Same model may have multiple batches, images only for reference.

SRP7030-R68FM

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP7030-R68FM
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP7030F
Package	Tape & Reel
Product Status	Obsolete
Type	Molded
Material - Core	Iron
Inductance	680 nH
Tolerance	±20%
Current Rating (Amps)	15 A
Current - Saturation (Isat)	17A
Shielding	Shielded
DC Resistance (DCR)	5mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.299" L x 0.256" W (7.60mm x 6.50mm)
Height - Seated (Max)	0.118" (3.00mm)
Base Product Number	SRP7030
Other Names	SRP7030-R68FMTR,SRP7030-R68FMDKR,SRP7030-R68FMCT,SRP7030R68FM
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273775-SRP7030-R68FM
Ultra Librarian 3D Model	Ultra Librarian SRP7030-R68FM CAD Model

Alternative Products

Description

The Bourns Inc. SRP7030-R68FM is a fixed inductor that is part of the SRP7030F series.

Type: Molded
Shielding: Shielded
Inductance: 680nH
Tolerance: ±20%
Package: Tape & reel
Standard Package: 1,000
Mounting: Surface Mount Technology (SMT)
Height: 0.118" (3.00mm)
DC Resistance (DCR): 5mOhm Max
Core Material: Iron
Temperature Range: -55°C to 125°C
REACH: Unaffected
MSL Level: 1 (Unlimited)
Current Rating: 15Amps
HTSUS Code: 8504.50.4000
