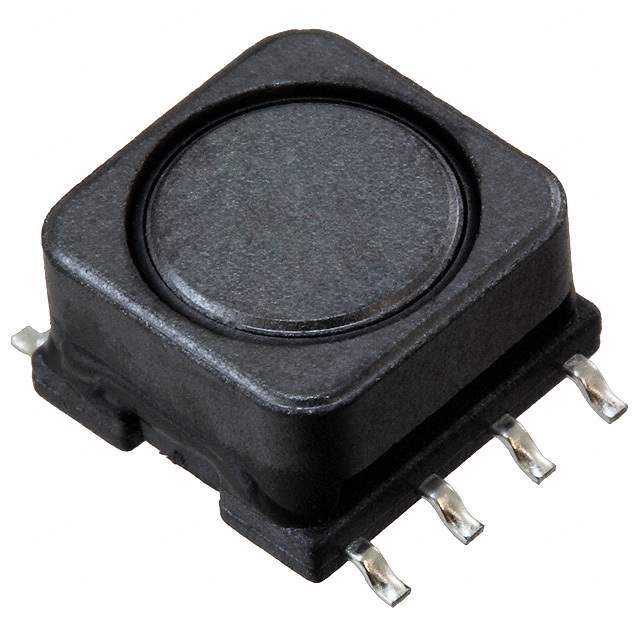

SRR0906-270ML Real Image
Same model may have multiple batches, images only for reference.

SRR0906-270ML

Part No SRR0906-270ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0906-270ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0906
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 27 µH
Tolerance ±20%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 1.8A
Shielding Shielded
DC Resistance (DCR) 140mOhm Max
Q @ Freq 35 @ 2.52MHz
Frequency - Self Resonant 17MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case 8-SMD, Gull Wing
Dimension 0.394" L x 0.374" W (10.00mm x 9.50mm)
Height - Seated (Max) 0.248" (6.30mm)
Base Product Number SRR0906
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273651-SRR0906-270ML
Ultra Librarian 3D Model Ultra Librarian SRR0906-270ML CAD Model

Description

The SRR0906-270ML is a drum core, wirewound inductor designed for use in various electronic applications.

  • Inductance: 27 µH
  • Tolerance: ±20%
  • Shielded: Yes
  • Core Material: Ferrite
  • Q @ Freq: 35 @ 2.52MHz
  • Package: Tape & Reel (TR)
  • Standard Package: 600
  • Mounting: SMD (SMT)
  • DC Resistance (DCR): 140mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Dimension: 0.394" L x 0.374" W (10.00mm x 9.50mm)
