Same model may have multiple batches, images only for reference.

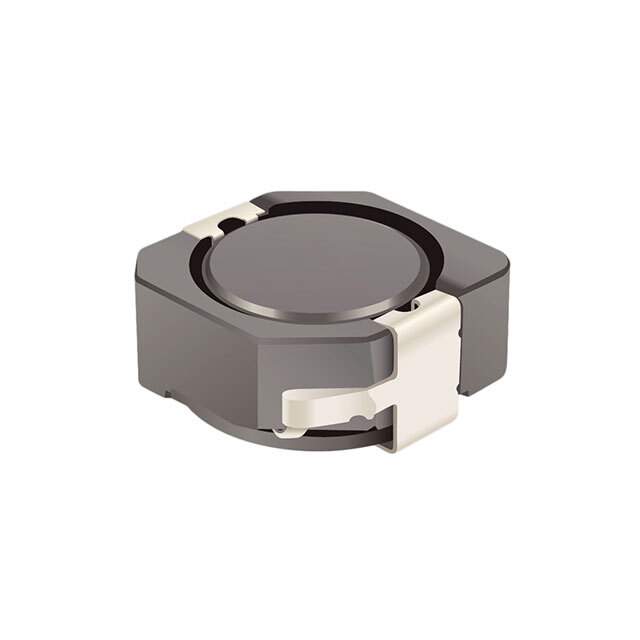

SRR1050A-3R3Y Real Image
Same model may have multiple batches, images only for reference.

SRR1050A-3R3Y

Part No SRR1050A-3R3Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1050A-3R3Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1050A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±30%
Current Rating (Amps) 6.5 A
Current - Saturation (Isat) 7.8A
Shielding Shielded
DC Resistance (DCR) 11mOhm Max
Frequency - Self Resonant 40MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SRR1050A
Other Names SRR1050A-3R3YTR,SRR1050A-3R3YCT,SRR1050A-3R3YDKR
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273558-SRR1050A-3R3Y
Ultra Librarian 3D Model Ultra Librarian SRR1050A-3R3Y CAD Model

Description

The SRR1050A-3R3Y is a shielded fixed inductor from Bourns Inc. with an inductance of 3.3 µH and a ±30% tolerance.

  • Package: Non-standard package in tape and reel
  • Core Material: Ferrite
  • Frequency Self-Resonant: 40MHz
  • DC Resistance: 11mOhm Max
  • Current Rating: 6.5A
  • Temperature Range: -40°C ~ 125°C
  • AEC-Q200 Rated: Yes
