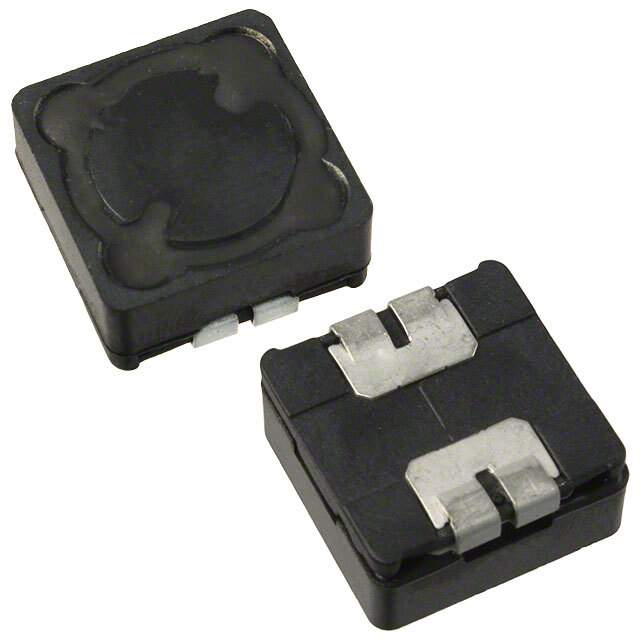

SRR1206-820YL Real Image
Same model may have multiple batches, images only for reference.

SRR1206-820YL

Part No SRR1206-820YL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1206-820YL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1206
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 82 µH
Tolerance ±15%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 2.1A
Shielding Shielded
DC Resistance (DCR) 185mOhm Max
Q @ Freq 16 @ 2.52MHz
Frequency - Self Resonant 6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.256" (6.50mm)
Base Product Number SRR1206
Other Names SRR1206-820YLDKR,SRR1206-820YL,SRR1206-820YLTR,SRR1206820YL,SRR1206-820YLCT
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273524-SRR1206-820YL
Ultra Librarian 3D Model Ultra Librarian SRR1206-820YL CAD Model

Description

The Bourns Inc. SRR1206-820YL is a shielded drum core wirewound inductor with a ferrite core material.

  • Package: 600
  • Tolerance: ±15%
  • Inductance: 82 µH
  • DC Resistance (DCR): 185mOhm Max
  • Temperature Range: -40°C to 125°C
  • Mounting: SMD (SMT)
  • Package/Case: Nonstandard
  • Height: 0.256" (6.50mm)
  • Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Q @ Freq: 16 @ 2.52MHz
  • Frequency of Self-Resonant: 6MHz
  • Current Rating: 1.2A
  • Inductance Frequency-Test: 1 kHz
  • REACH: Unaffected
