Same model may have multiple batches, images only for reference.

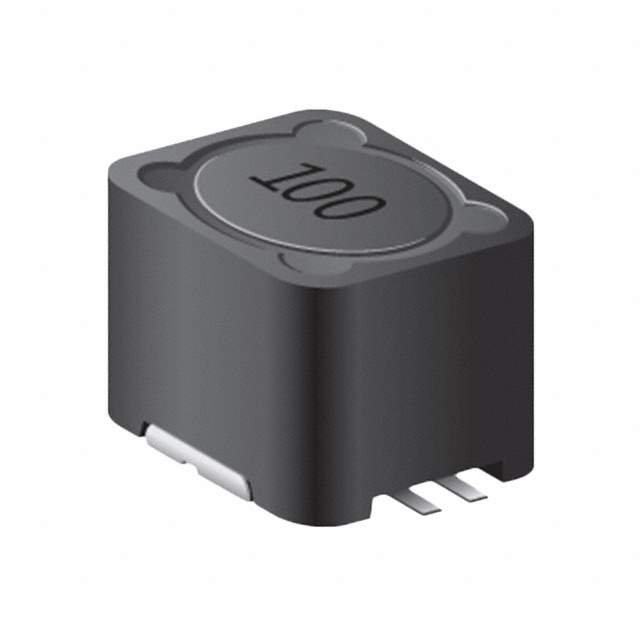

SRR1210A-560M Real Image
Same model may have multiple batches, images only for reference.

SRR1210A-560M

Part No SRR1210A-560M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1210A-560M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1210A
Package Tape & Reel
Material - Core Ferrite
Inductance 56 µH
Tolerance ±20%
Current Rating (Amps) 3.4 A
Current - Saturation (Isat) 2.9A
Shielding Shielded
DC Resistance (DCR) 90mOhm Max
Q @ Freq 8 @ 2.52MHz
Frequency - Self Resonant 4MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Base Product Number SRR1210A
Other Names SRR1210A-560MTR,SRR1210A-560MDKR,SRR1210A-560MCT
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273472-SRR1210A-560M
Ultra Librarian 3D Model Ultra Librarian SRR1210A-560M CAD Model

Description

The SRR1210A-560M is a shielded fixed inductor from Bourns Inc. with an inductance of 56 µH and a ±20% tolerance.

  • Package: Non-standard, tape and reel
  • Core Material: Ferrite
  • Q @ Freq: 8 @ 2.52MHz
  • Frequency Self-Resonant: 4MHz
  • DC Resistance: 90mOhm Max
  • Current Rating: 3.4A
  • Current Saturation: 2.9A
  • Temperature Range: -40°C ~ 125°C
  • Rated: AEC-Q200
