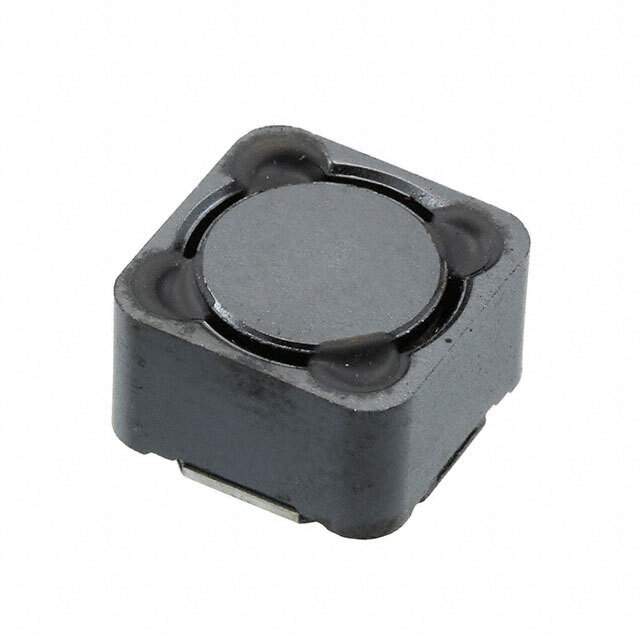

SRR1280A-391K Real Image
Same model may have multiple batches, images only for reference.

SRR1280A-391K

Part No SRR1280A-391K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1280A-391K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1280A
Package Tape & Reel
Material - Core Ferrite
Inductance 390 µH
Tolerance ±10%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 1.4A
Shielding Shielded
DC Resistance (DCR) 680mOhm Max
Q @ Freq 24 @ 796kHz
Frequency - Self Resonant 2.7MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Supplier Device Package 1280
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Base Product Number SRR1280A
Other Names SRR1280A-391KCT,SRR1280A-391K,SRR1280A-391KTR,SRR1280A-391KDKR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273377-SRR1280A-391K
Ultra Librarian 3D Model Ultra Librarian SRR1280A-391K CAD Model

Description

The SRR1280A-391K model from Bourns Inc. is a fixed inductor that is designed for use in various electronic applications such as inductors, coils, and chokes.

  • Type: Shielded type
  • Inductance: 390 µH
  • Tolerance: ±10%
  • DC Resistance: 680mOhm Max
  • Current Rating: 1 A
  • Frequency Self-Resonant: 2.7MHz
  • Height: 0.315" (8.00mm)
  • Mounting: SMD (SMT) technology
  • Core Material: Ferrite core material
  • Q @ Freq: 24 @ 796kHz
  • Package/Case: Nonstandard package/case type
  • Temperature Range: -40°C ~ 125°C
